Description
Product Overview

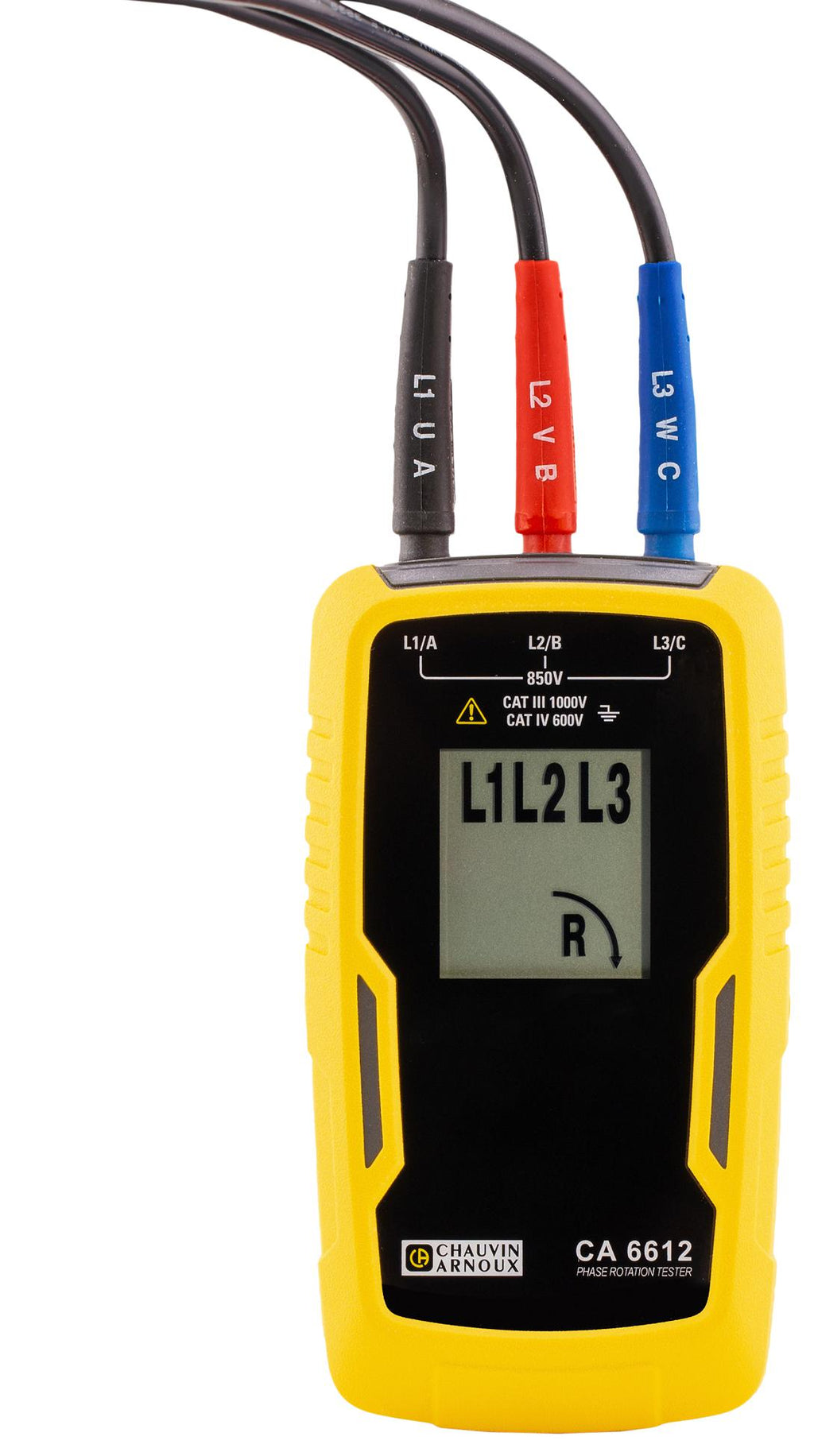

P01191308 is a CA 6612 phase and motor rotation tester designed for the rapid verification of three-phase power supply networks from 40 to 850V AC. This portable, easy-to-use instrument features a clear LCD display and is powered directly by the network under test, eliminating the need for batteries. Ideal for industrial installation, inspection, and maintenance applications, the CA 6612 quickly determines phase rotation direction to help ensure correct system wiring and operation. Its integrated magnetic back allows secure attachment to vertical metal surfaces, providing convenient hands-free use in the field.
- Indicates phase presence or absence with 1000V CAT III safety rating
- Automatic testing as soon as the instrument is connected
- Terminals and cables identified by colour-coding to simplify connection
- IP40 rated
- Dimension is 135 x 75 x 31mm
Contents

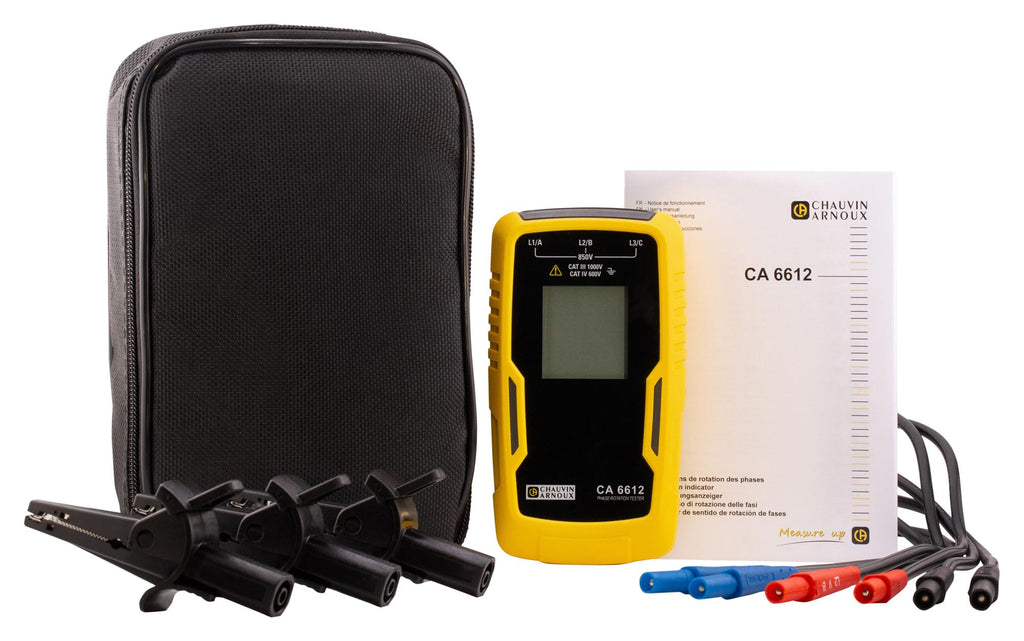

CA 6612 phase and motor rotation tester, 3 x test leads, 3 x crocodile clips, 1 x user's manual in 5 languages.
Product details
| Test Frequency Range | 15Hz to 400Hz |
| Operating Temperature Min | 0°C |
| External Height | 31mm |
| External Depth | 135mm |
| Product Range | - |
| Voltage Measuring Range AC | 40V to 850V |
| Operating Temperature Max | 40°C |
| External Width | 75mm |
| Weight | 137g |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01191308 |
| Quantity | Each |
| Technical Data Sheet (424.34KB) EN | View or download |
| User Manual (5.43MB) EN | View or download |
