Product Overview

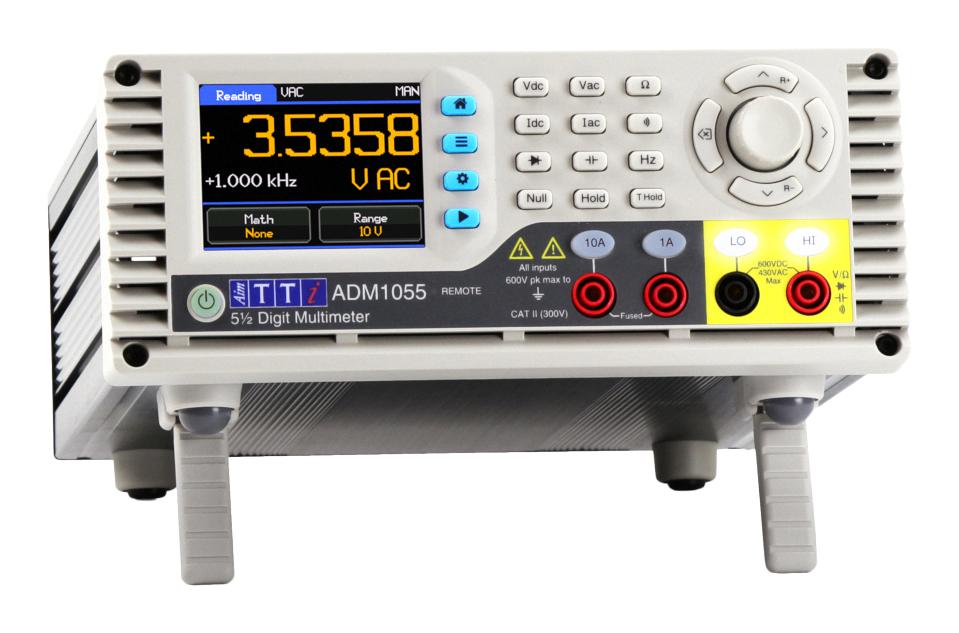

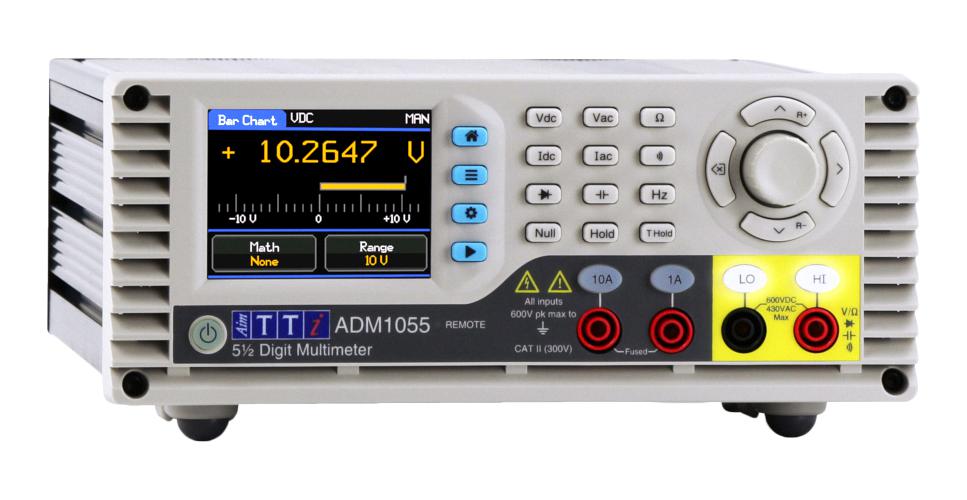

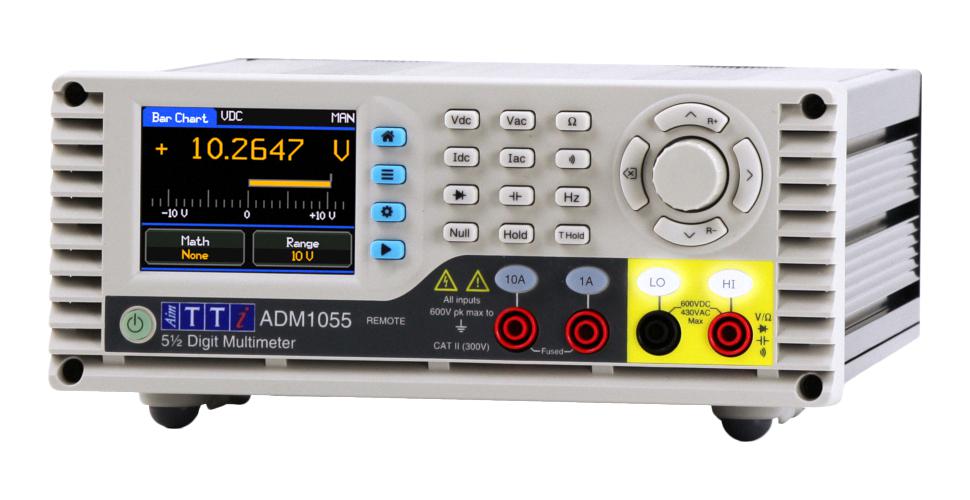

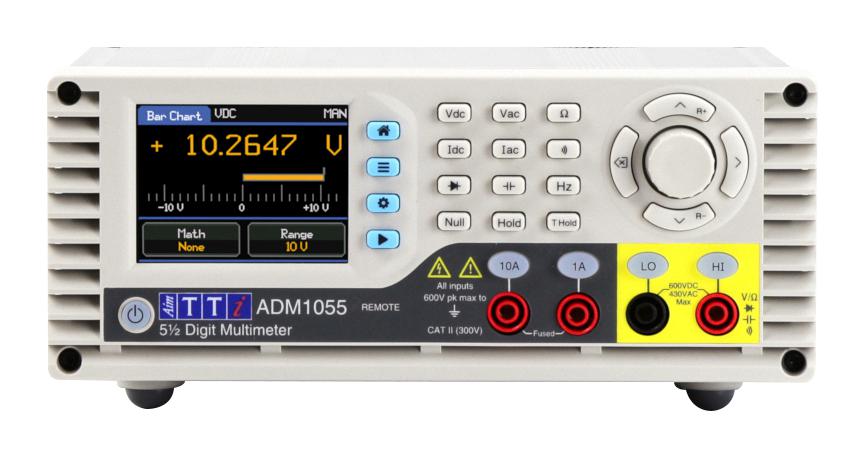

ADM1055 is a 5½ digit high performance bench multimeter. It offers high-precision measurement with 5½ digit resolution and 0.02% basic DC accuracy. It supports ultra-fine measurements with sensitivities down to 1µV, 1mΩ, 10nA, 0.01Hz, and 100pF. Featuring a simple touch operated GUI with customisable display options, the ADM1055 is quick and intuitive to set-up. It is ideal for busy lab environments, with measurement modes easily accessed via dedicated front-panel keys and illuminated input terminals that light up according to the selected function. Together, these features simplify operation, guide users to the correct connections, and help prevent errors.
- Integrated resettable current trip protects instrument and DUT up to 48V, no fuse needed
- Intuitive touch screen operation
- Bar chart, histogram and statistics displays
- Terminal illumination for guided use
- 9 measurement modes, including frequency and capacitance
- Advanced math functions
- Compact footprint, aluminium case (213 x 228 x 98mm (W x D x H))
- USB remote interface, SCPI compatible
- Free test bridge control software

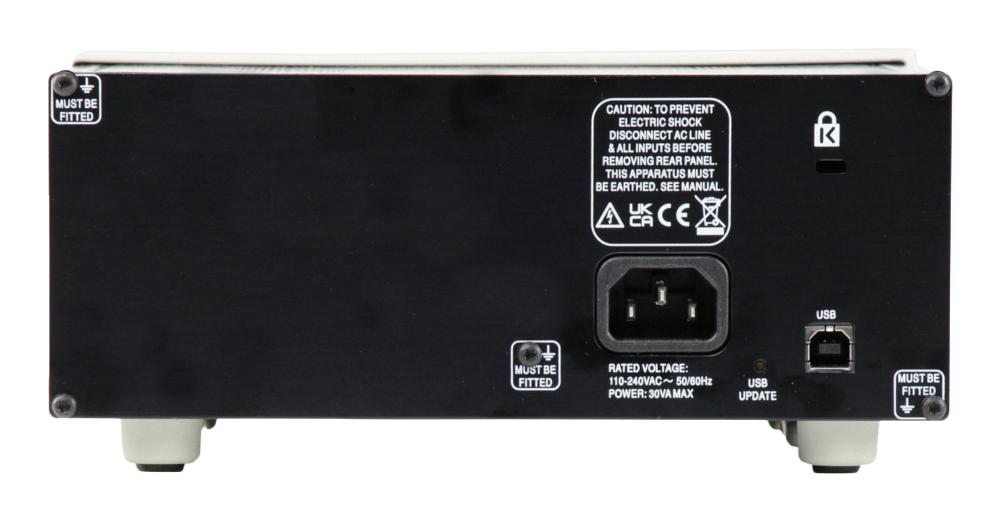

- Kensington lock security
Product details
| No. of Digits |
5.5 |
| Current Measure AC Max |
10A |
| Resistance Measure Max |
10Mohm |
| Current Measure DC Max |
10A |
| Manufacturer Warranty |
- |
| Plug Type |
- |
| DMM Connectivity |
USB |
| Voltage Measure AC Max |
430V |
| Product Range |
A Series |
| Voltage Measure DC Max |
600V |
| DMM Functions |
AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
AIM-TTI INSTRUMENTS |
| Part Number |
ADM1055 |
| Quantity |
Each |
| Technical Data Sheet (2.11MB) EN |
View or download |
