Product Overview

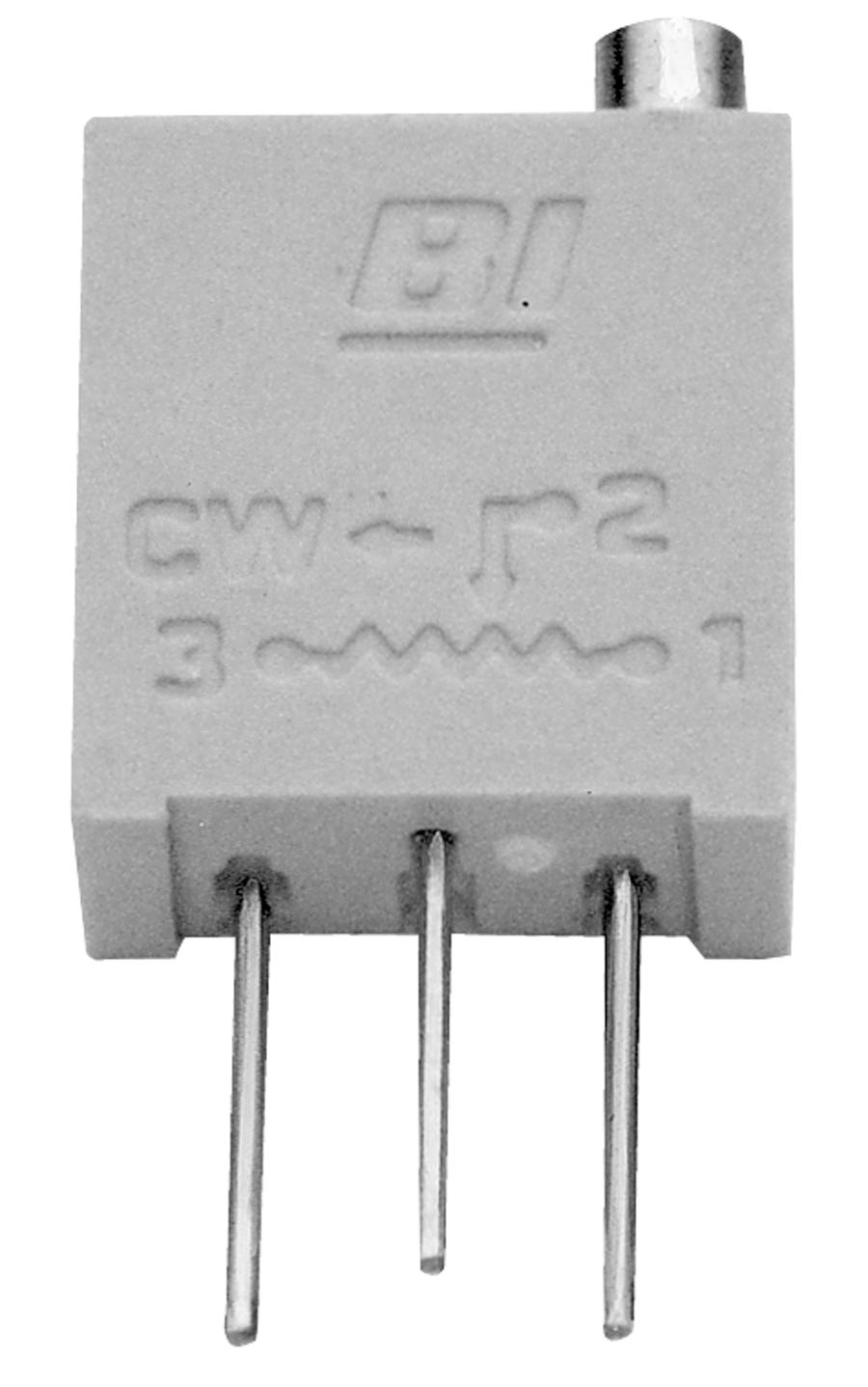

TT ELECTRONICS / BI TECHNOLOGIES 67YR100KLF Trimmer, Multi Turn, Cermet, Top Adjust, 100 kohm, Through Hole, 20 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Top Adjust |
| Potentiometer Mounting |
Through Hole |
| Product Range |
67 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
3/8 Inch Square |
| Product Length |
9.53mm |
| Product Height |
10.4mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Element Material |
Cermet |
| Track Resistance |
100kohm |
| No. of Turns |
20Turns |
| Power Rating |
500mW |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Case / Package |
Radial Leaded |
| Product Width |
4.95mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
TT ELECTRONICS / BI TECHNOLOGIES |
| Part Number |
67YR100KLF |
| Quantity |
Each |
| Technical Data Sheet (461.75KB) EN |
View or download |
