Product Overview

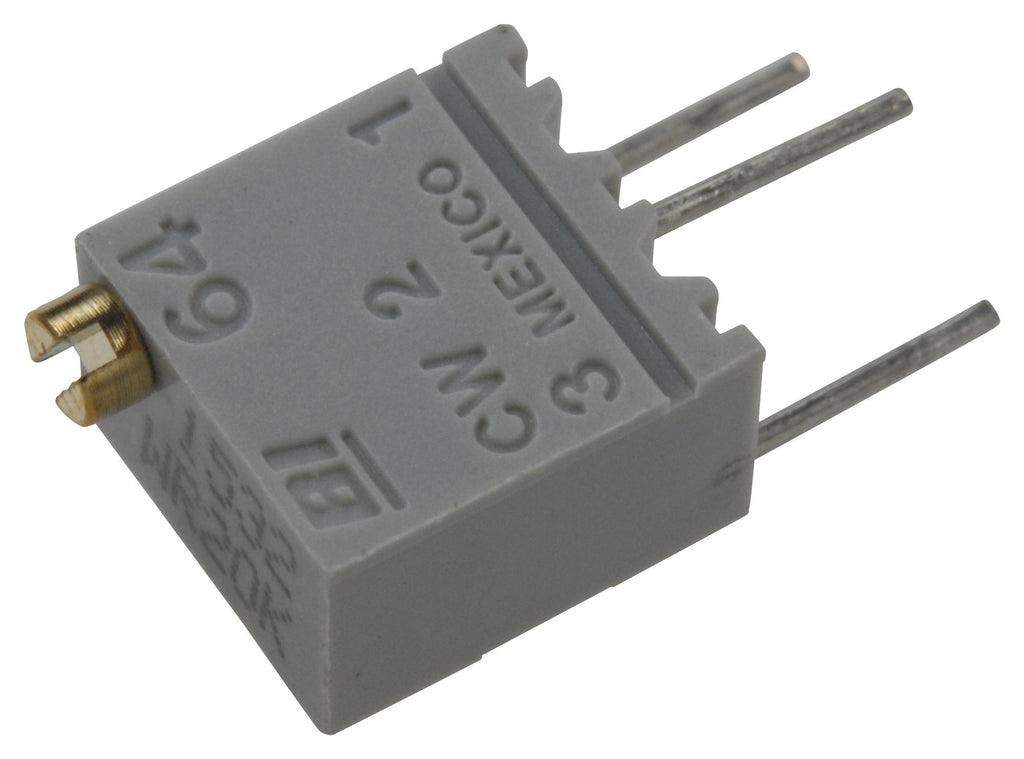

TT ELECTRONICS / BI TECHNOLOGIES 64XR20KLF Trimmer, Multi Turn, Cermet, Side Adjust, 20 kohm, Through Hole, 12 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Side Adjust |
| Potentiometer Mounting |
Through Hole |
| Product Range |
64 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
1/4 Inch Square |
| Product Length |
6.35mm |
| Product Height |
6.86mm |
| Operating Temperature Max |
150°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Element Material |
Cermet |
| Track Resistance |
20kohm |
| No. of Turns |
12Turns |
| Power Rating |
250mW |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Case / Package |
- |
| Product Width |
4.19mm |
| Operating Temperature Min |
-65°C |
| Qualification |
- |
Other details
| Brand |
TT ELECTRONICS / BI TECHNOLOGIES |
| Part Number |
64XR20KLF |
| Quantity |
Each |
| Technical Data Sheet (1.04MB) EN |
View or download |
