Product Overview
STM32MP215FAN3 is an Arm®-based microprocessor featuring a heterogeneous dual-core architecture that combines a 64-bit Cortex®-A35 core running at up to 1.5GHz with a Cortex®-M33 core operating at up to 300MHz. This architecture enables high-level operating systems to run on the Cortex-A35 while delivering deterministic real-time performance through the Cortex-M33. The device supports external memories up to 4GB, including DDR3L, DDR4, and LPDDR4 via a 16-bit SDRAM interface, and integrates 456KB of internal SRAM with ECC for enhanced reliability. It incorporates multi-layer AXI and AHB interconnects with up to 123 secure GPIOs featuring interrupt capability. Advanced security functions include Arm® TrustZone® technology, secure boot, hardware cryptographic accelerators, tamper detection, and comprehensive resource isolation. Multimedia capabilities include an LCD-TFT controller supporting 24-bit RGB displays up to 1920 × 1080 resolution and camera interfaces such as MIPI CSI-2.
- 64-bit Cortex®-A35 with NEON™, TrustZone®, and multi-level cache
- Cortex®-M33 core with FPU, MPU, and TrustZone® support
- Octo-SPI interface and flexible external memory controller
- Multiple power domains, LDO regulators, and low-power modes
- 48-channel DMA system for high-performance data transfers
- Up to 37 communication interfaces including USB, CAN-FD, SPI, and Ethernet
- STNoC interconnect up to 600MHz with 128/64/32-bit bus and 32-bit Arm® AMBA® AHB up to 300MHz
- 1.71 to 1.95V and 2.7/3.0 to 3.6V multiple section I/O supply
- Junction temperature range from -40°C to +125°C

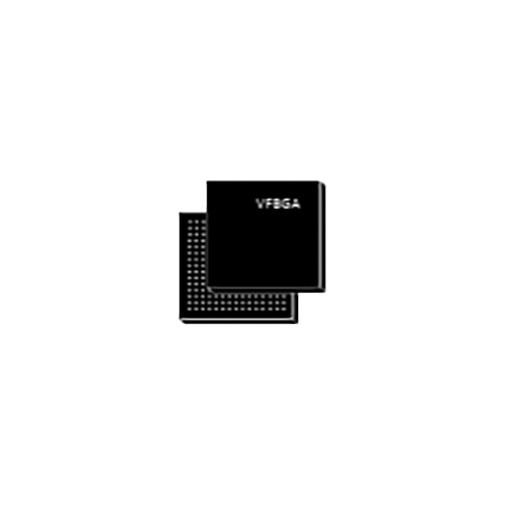

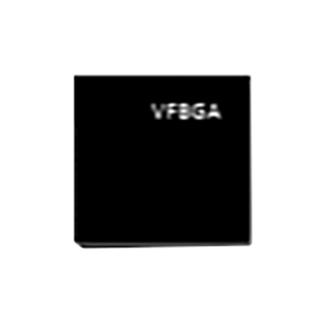

- Available in 273 pins VFBGA package
Product details
| Product Range |
STM32 Family STM32MP2 Series Microprocessors |
| Program Memory Size |
196KB |
| No. of Pins |
273Pins |
| Supply Voltage Max |
3.6V |
| Interfaces |
Ethernet, FDCAN, I2C, I3C, LPUART, MIPI CSI, Parallel, SAI, SDMMC, SPI, SPDIFRX, UART, USART, USB |
| Data Bus Width |
32 bit, 64 bit |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MPU Family |
STM32 |
| No. of CPU Cores |
2Cores |
| IC Case / Package |
VFBGA |
| Supply Voltage Min |
1.71V |
| Operating Frequency Max |
1.5GHz |
| No. of I/O's |
123I/O's |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| MPU Series |
STM32MP2 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32MP215FAN3 |
| Quantity |
Each |
| Technical Data Sheet (11.71MB) EN |
View or download |
| Product Change Notice (533.26KB) EN |
View or download |
