Product Overview

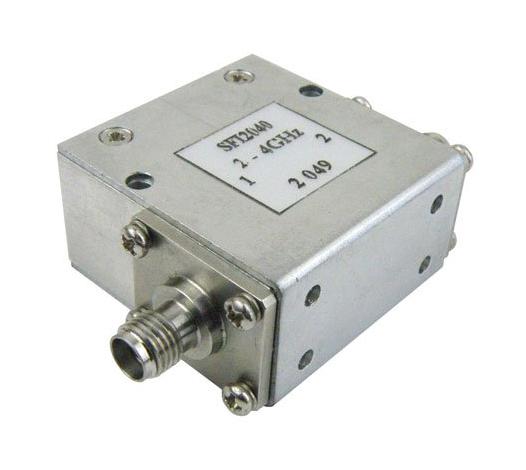

FAIRVIEW MICROWAVE SFI2040 RF Isolator, SMA Jack to Jack, 10 W, Counterclockwise, 2 GHz to 4 GHz, 0.75 dB Insertion Loss Max
Product details
| Frequency Min |
2GHz |
| Direction |
Counterclockwise |
| Isolation Min |
18dB |
| Average Power Max |
10W |
| RF Isolator Package Style |
Module |
| Frequency Band |
2GHz to 4GHz |
| Operating Temperature Min |
- |
| Product Range |
- |
| Frequency Max |
4GHz |
| Insertion Loss Max |
0.75dB |
| Return Loss |
- |
| RF Isolator Dimension |
34 mm x 18 mm |
| RF Isolator Input Connector |
SMA Jack to SMA Jack |
| VSWR |
1.4:1 |
| Operating Temperature Max |
- |
| SVHC |
To Be Advised |
Other details
| Brand |
FAIRVIEW MICROWAVE |
| Part Number |
SFI2040 |
| Quantity |
Each |
| Technical Data Sheet (63.00B) EN |
View or download |
