Product Overview

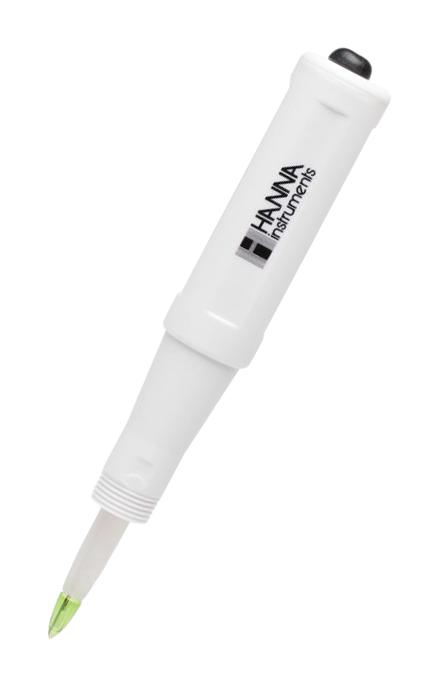

FC2320 is a digital PVDF body foodcare pH electrode for meat products. It is a digital PVDF body, gel filled pH electrode with a built-in temperature sensor for temperature compensated measurements in a single probe design. This probe connects to the meter with a 3.5mm connector. The 3.5mm connector is proprietary to meters that use digital electrodes. The FC2320 electrode features a built-in microchip that stores sensor type, serial number, and calibration information. It also features an open junction design with viscolene gel electrolyte, a sensing bulb made of low temperature glass, and a conical tip shape. This design consideration is ideal for pH measurements in samples such as meat and semi-frozen food samples. The recommended operating temperature range is from 0 to 60℃.
- Measurement range from 0 to 12pH
- Conical (6 x 10mm) glass tip
- Maximum pressure of 0.1bar
- Operating temperature range from 0 to 60°C (32 to 140°F)
- 36mm / 164mm body length/overall length, 1m (3.3ft) cable length
Product details
| Accessory Type |
Digital pH Edge Electrode |
| Product Range |
- |
| For Use With |
Hanna Instruments HI-2020 Edge Hybrid Meters |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
HANNA INSTRUMENTS |
| Part Number |
FC2320 |
| Quantity |
Each |
| Technical Data Sheet (90.82KB) EN |
View or download |
