Product Overview

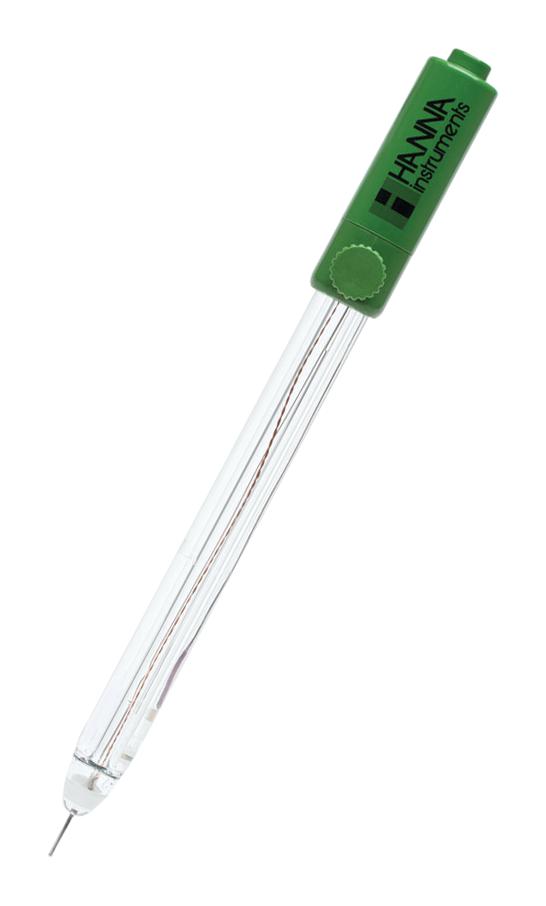

HI-36180 is a glass body, double junction, refillable ORP electrode with a built-in temperature sensor. This electrode has a single ceramic junction and the ORP sensing pin is made with platinum. As a digital ORP electrode, it features a built-in microchip that stores sensor type, serial number, and calibration information. This probe connects to the meter with a 3.5mm connector. The 3.5mm connector is proprietary to meters that use digital electrodes. This design consideration is ideal for laboratories and general purpose ORP measurements.
- ORP measurement of ±2000mV
- 120mm overall length and 1m cable length
- Temperature operating range from -5 to 100°C (23 to 212°F)
- Device is configured for a 230V power supply
Product details
| Accessory Type |
Digital ORP Probe with Integrated Temperature Sensor |
| Product Range |
- |
| For Use With |
Hanna Instruments pH/ORP Benchtop Meters |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
HANNA INSTRUMENTS |
| Part Number |
HI-36180 |
| Quantity |
Each |
| Technical Data Sheet (3.14MB) EN |
View or download |
