Product Overview
DQM1-15-S5-S is a DQM1-S series DC-DC converter housed in a compact SIP-6 footprint. This series carries a temperature range of -40°C to +105°C, making it a reliable option for ITE and industrial applications.
- Input voltage range from 13.5 to 16.5V DC and 15V DC (typ)
- Single regulated output is 5V DC
- Output current min/max is 20/200mA
- Max output power is 1W
- Max ripple & noise 100mVp-p
- Typical efficiency is 86%
- 3000V DC isolation voltage
- Certified to IEC/EN 62368-1
- UL94V-0 black plastic, flame retardant, heat resistant case material
- Natural convection cooling
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
1:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
200mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
6mm |
| Input Voltage DC Min |
13.5V |
| Product Range |
DQM1-S Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
15V |
| Width |
10.10mm |
| Depth |
19.6mm |
| Input Voltage DC Max |
16.5V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
CUI |
| Part Number |
DQM1-15-S5-S |
| Quantity |
Each |
| Technical Data Sheet (75.00B) EN |
View or download |

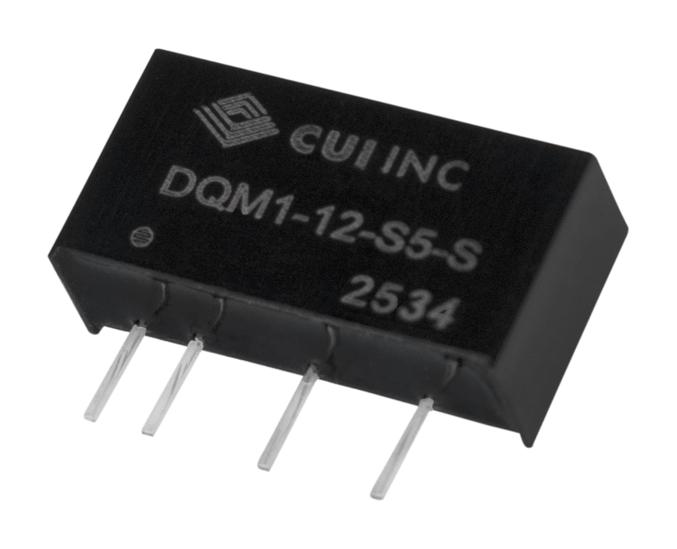

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
