Product Overview

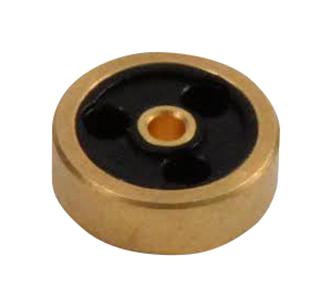

33391C is an insulator bead assembly that delivers excellent performance from DC to 18GHz and are compatible with both Type-N and APC-7 connectors.
- Temperature stable, low signal loss, excellent reflection coefficient
- SWR (typical): 1.004 from DC to 2GHz, 1.004 + 0.0009GHz, above 2GHz, from 2 to 18GHz
- Inner/outer ring coplanarity: ±0.0178mm (±0.0007"), ±0.0127mm (±0.0005") typical
- Operating temperature range from 0° to 55°C
Product details
| RF Test Component Type |
Insulator Assembly |
| Impedance |
- |
| For Use With |
Keysight Microwave & RF Test Systems |
| SVHC |
No SVHC (25-Jun-2025) |
| Frequency |
18GHz |
| Continuous RF Input Power Max |
- |
| Product Range |
- |
Other details
| Brand |
KEYSIGHT TECHNOLOGIES |
| Part Number |
33391C |
| Quantity |
Each |
| Technical Data Sheet (229.64KB) EN |
View or download |
