Product Overview

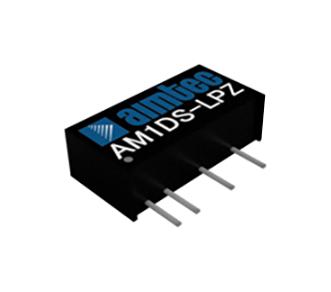

AM1DS-0505SH30LPZ is an AM1DS-LPZ series 1W SIP7 DC/DC converter. It offers great cost savings thanks to an improved manufacturing process. This compact SIP7 design will surely benefit your new system design. The AM1DS-LPZ is suitable for instrumentation, industrial controls, industrial applications, communication and IoT applications.
- Input voltage range from 4.5-5.5V DC and 5V DC nominal voltage
- Single output voltage is 5V DC
- Input current (typ) is 235/3mA at full load/no load
- Single output current is 200/20mA (max/min)
- 3000V DC isolation voltage
- 4000µF maximum capacitive load
- 86% typ efficiency
- Continuous short circuit protection
- Dimension (L x W x H) is 0.77 x 0.24 x 0.40inch (19.55mm x 6.09mm x 10.16mm)
- Operating temperature range from -40°C to +105°C (with derating at 85°C)
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
200mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.16mm |
| Input Voltage DC Min |
4.5V |
| Product Range |
AM1DS-LPZ Series |
| DC / DC Converter Type |
SIP-7, Module |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
5V |
| Width |
6mm |
| Depth |
19.65mm |
| Input Voltage DC Max |
5.5V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
AIMTEC |
| Part Number |
AM1DS-0505SH30LPZ |
| Quantity |
Each |
| Technical Data Sheet (75.00B) EN |
View or download |
