Description
Product Overview

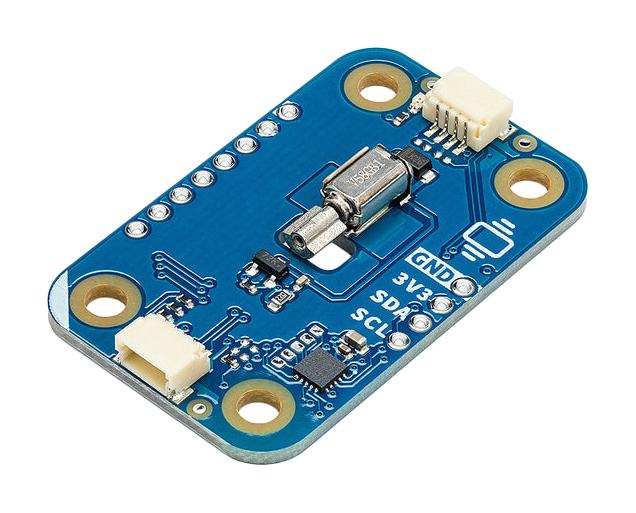

ABX00130 is an Arduino Modulino® Vibro board. This is powered by an on-board STM32C011F4 microcontroller, features a compact vibration motor (VZ43FM1B8230001L) for haptic feedback and alert applications. This setup enables simple vibration control via I2C and provides tactile notifications for various interactive projects. Targeted for maker, beginner, education area of applications.
- Compact vibration motor (VZ43FM1B8230001L) providing strong tactile feedback at 12,000rpm
- Integrated STM32C011F4 microcontroller providing I2C interface by default
- N-channel MOSFET (2N7002KT1G) for efficient motor control
- Designed for 3.3V operation via the Qwiic connector (I2C)
- Ideal for haptic feedback and vibration alerts in interactive projects
- Power consumption of ~3.4mA (MCU) + 67mA typical (motor active)
- Motor current of 67mA typical, 85mA maximum
- Communication: I2C (Qwiic), SWD (reprogramming), UART (option)
- Operating temperature range from -40°C to +85°C
Contents
Modulino® Vibro, I2C qwiic cable.
Product details
| Silicon Manufacturer | STMicroelectronics, Vybronics |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Family Name | STM32 |
| Kit Contents | Modulino Vibro Evaluation Board STM32C011F4, VZ43FM1B8230001L, I2C Qwiic Cable |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | ARM |
| Silicon Core Number | STM32C011F4, VZ43FM1B8230001L |
| For Use With | Arduino UNO Q, Nesso N1, UNO R4 WiFi, Nano Boards |
| Product Range | - |
Other details
| Brand | ARDUINO |
| Part Number | ABX00130 |
| Quantity | Each |
| Technical Data Sheet (1.52MB) EN | View or download |
