Description
Product Overview

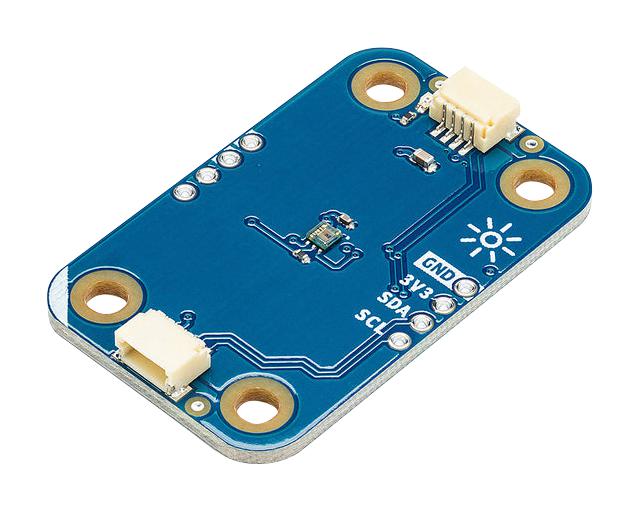

ABX00111 is an Arduino Modulino® Light board. It features the LTR-381RGB-01 ambient light, RGB, and infrared sensor, providing comprehensive optical sensing capabilities in a compact form factor. This sensor enables colour recognition, ambient light measurement, and infrared detection for a wide range of interactive and automation applications. Targeted for maker, beginner, education area of applications.
- LTR-381RGB-01 sensor providing ambient light, RGB colour, and infrared measurements
- Precision colour detection with separate red, green, blue channel for accurate colour identification
- Ambient light sensing with wide dynamic range for automatic lighting control
- Infrared detection for proximity and thermal sensing applications
- I2C (Qwiic) interface for solder-free integration, 3.3V via Qwiic nominal operating voltage
- Power consumption of ~200µA active, 20-bit ADC resolution, I2C communication
- Ambient light range of 0.01lux to 120,000lux
- Spectral response red: 600-700nm, green: 500-600nm, blue: 400-500nm
- Operating temperature range from -30°C to +70°C
Contents
Modulino® light, I2C qwiic cable.
Product details
| Silicon Manufacturer | Lite-On Technology |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Modulino Light Evaluation Board LTR-381RGB-01, I2C Qwiic Cable |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | - |
| Silicon Core Number | LTR-381RGB-01 |
| For Use With | Arduino UNO Q, Nesso N1, UNO R4 WiFi, Nano Boards |
| Product Range | - |
Other details
| Brand | ARDUINO |
| Part Number | ABX00111 |
| Quantity | Each |
| Technical Data Sheet (1014.64KB) EN | View or download |
