Product Overview

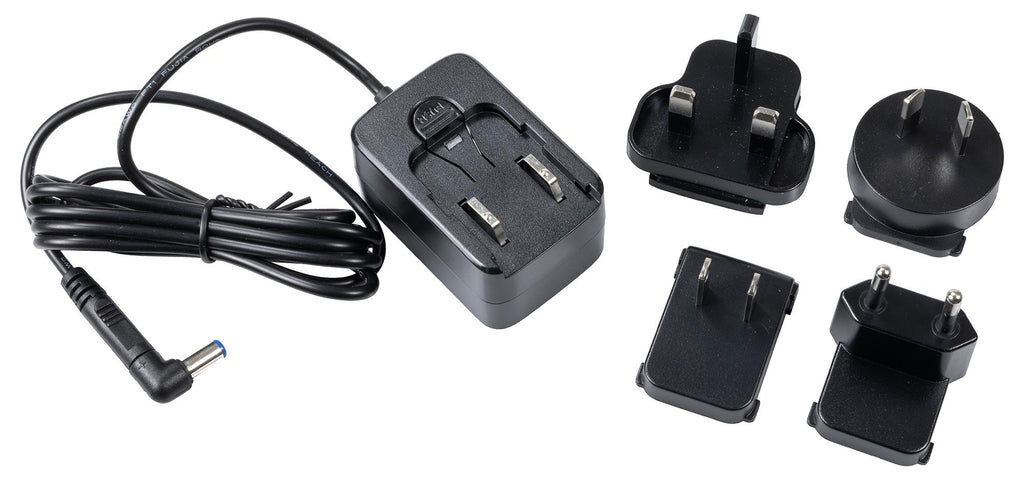

PELL0492 is a 36W, interchangeable external power supply.
- 115V/230V AC input
- 24V DC voltage, 500mA rated current
- Interchangeable AC heads (UK, EU, US, and AUS)
- Over-current, over-voltage, and short circuit protection
- EN62368-1 approved
- DC cable length of 1.5m, with a right-angled 2.1mm DC plug
- Supplied with AUS, EURO, UK, and US interchangeable heads
- UK type G, Euro type C, US type A and AUS type I mains plugs
- Multihead power supply as used in the UK, Europe and many other countries
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
36W |
| Output Current - Output 1 |
1.5A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
Pro Elec Plugtop Power Supplies |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Connector |
Right Angle Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
230V AC |
| Plug Type |
AU, EU, UK, US |
Other details
| Brand |
PRO ELEC |
| Part Number |
PELL0492 |
| Quantity |
Each |
| Technical Data Sheet (782.97KB) EN |
View or download |
