Product Overview

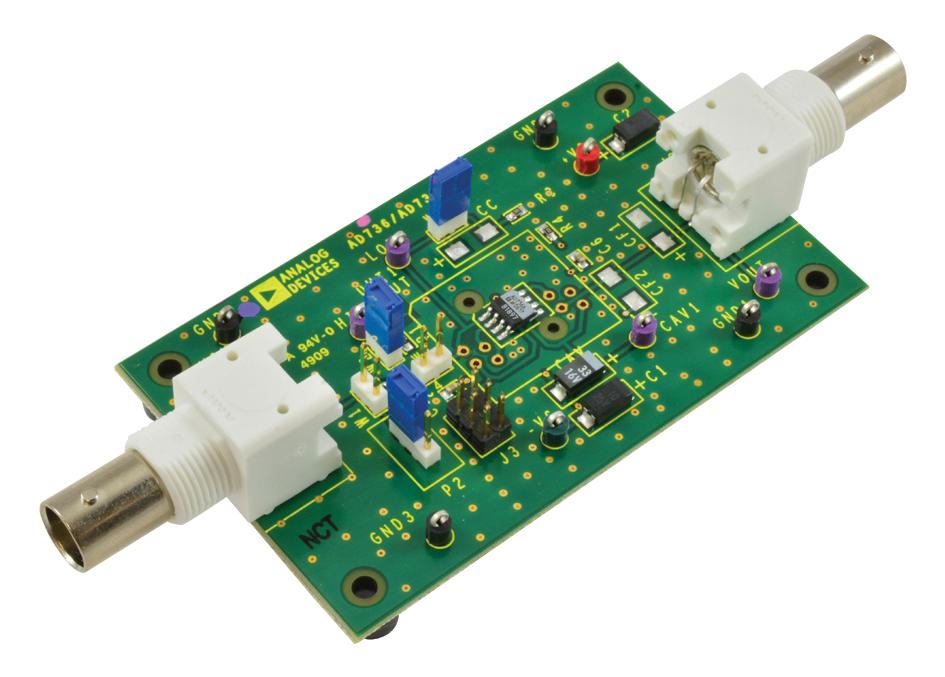

AD736-EVALZ is an AD736 low cost, low power, true RMS-to-DC converter evaluation board. The board is configured for dual supplies and high impedance input. Optional jumper locations enable low impedance and dc input connections. Using the low impedance input (Pin 1) often enables higher input signals than otherwise possible. A DC connection enables an AC plus DC measurement, but care must be taken so that the opposite polarity input is not DC-coupled to ground.
- Board is designed for multipurpose applications and can be used for the AD737 as well
- Wide power supply range (AD736): +2.8V, -3.2V to ±16.5V
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Data Converter |
| Kit Contents |
Eval Board AD736 |
| SVHC |
No SVHC (25-Jun-2025) |
| Silicon Core Number |
AD736 |
| Application Sub Type |
RMS to DC Converter |
| Product Range |
AD736 Series |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD736-EVALZ |
| Quantity |
Each |
| Technical Data Sheet (472.81KB) EN |
View or download |
