Product Overview

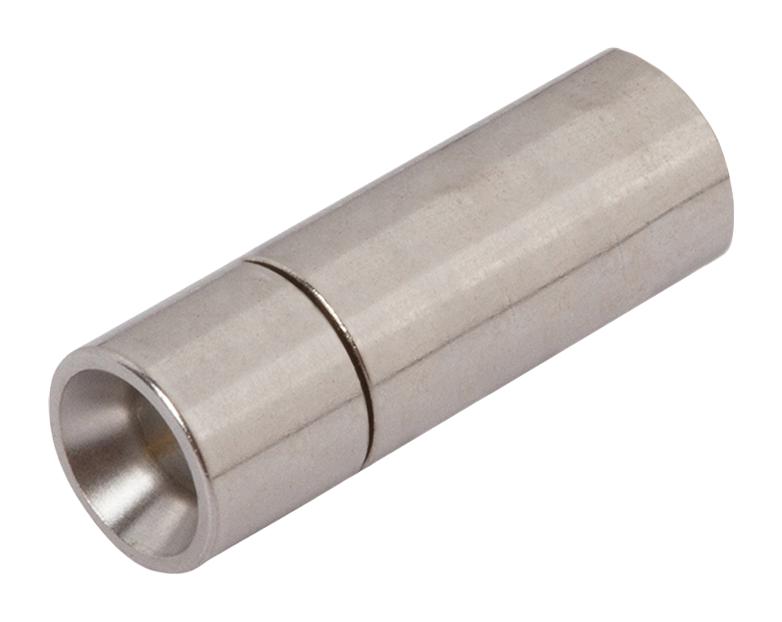

1132-6156 is a SMPM male, SB to male adapter, FD. This adapter offers precision-machined stainless-steel bodies, excellent VSWR up to 65GHz. This high density adapter solution enables tight-pitch RF layouts without compromising signal integrity. Ideal for applications in mil-aero, test & measurement, and more. Built to withstand harsh environments, this product provides in-series adapter solutions.
- Straight orientation 1 and 2 (body), push-on coupling
- Smooth bore detent 1 and full detent 2
- 65GHz frequency, 50 ohm impedance
- ≥ -80dB DC - 3GHz, ≥ -65dB 3 - 26.5GHz shielding effectiveness
- 325VRMS dielectric withstanding voltage
- Temperature rating from -65°C to +165°C
- Stainless steel body material and gold plated beryllium copper contact material
- PTFE insulator
Product details
| Convert From Coax Type |
SMPM RP |
| Convert To Coax Type |
SMPM RP |
| Adapter Body Style |
Straight Adapter |
| Connector Type |
SMPM RP Coaxial |
| SVHC |
No SVHC (25-Jun-2025) |
| Convert From Gender |
Plug |
| Convert To Gender |
Plug |
| Impedance |
50ohm |
| Product Range |
- |
Other details
| Brand |
AMPHENOL SV MICROWAVE |
| Part Number |
1132-6156 |
| Quantity |
Each |
| Drawing (103.49KB) EN |
View or download |
