Product Overview

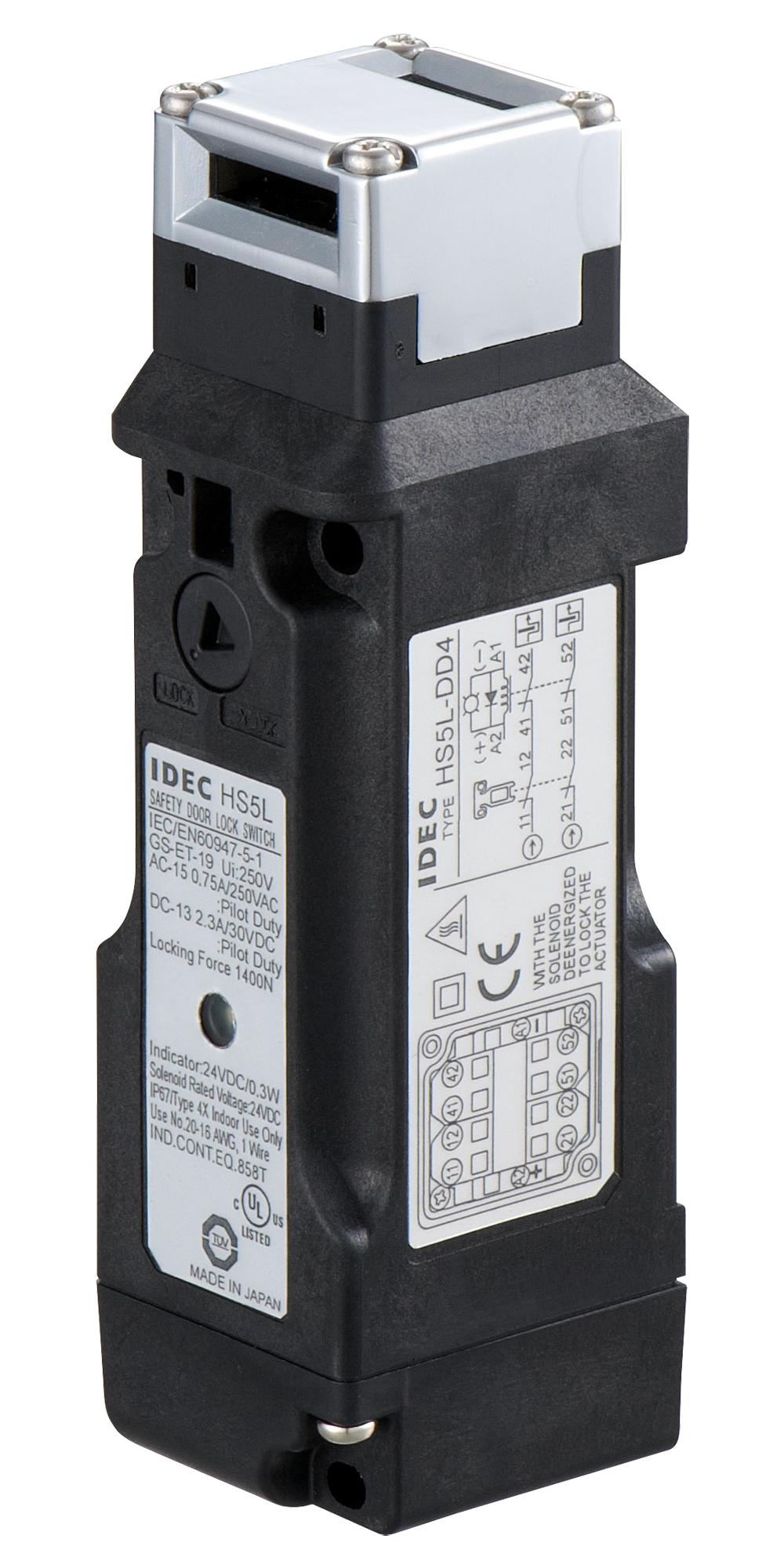

HS5L-VD44M-G is a HS5L miniature locking safety switch.
- 4PST-NC contact configuration
- 30V/125V max contact voltage DC/AC, 2.5/2.5A max contact current DC/AC
- 1400N locking strength
- Gold-plated contacts suitable for small loads
- The head orientation can be rotated
- Allowing 8 different actuator entries
- Applicable standards: EN ISO14119, GS-ET-19 (TUV approval), EN60947-5-1 (TUV approval)
- UL508 (UL Listing), CSA C22.2 No. 14 (c-UL listed), IEC60204-1/EN60204-1
- IP66 degree of protection, M20 conduit opening, M20 conduit size
- Compact body: 35x40x127mm
Product details
| Product Range |
HS5L Series |
| Switch Terminals |
Spring Clamp |
| Contact Current AC Max |
2.5A |
| Contact Voltage DC Max |
30V |
| SVHC |
No SVHC (25-Jun-2025) |
| Contact Configuration |
4PST-NC |
| Contact Voltage AC Max |
125V |
| IP Rating |
IP67 |
| Contact Current DC Max |
2.5A |
Other details
| Brand |
IDEC |
| Part Number |
HS5L-VD44M-G |
| Quantity |
Each |
| Technical Data Sheet (2.20MB) EN |
View or download |
