Product Overview

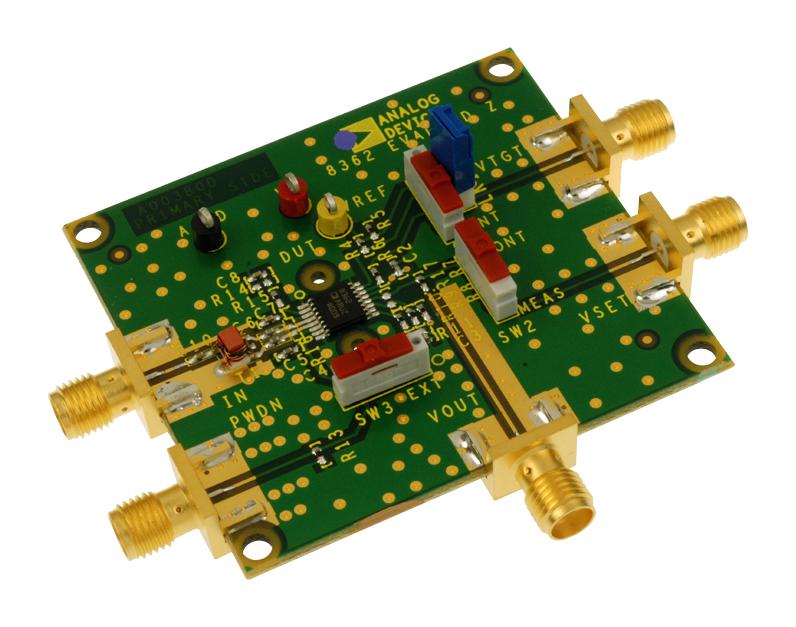

AD8362-EVALZ is an AD8362 50Hz to 3.8GHz 65dB TruPwr™ detector evaluation board. This is a fully populated, 4-layer, FR4-based evaluation board. For normal operation, it requires a 5V/50mA power supply. The 5 V power supply should be connected to the pins labelled VPOS and AGND. The RF input signal is applied to the SMA connector labelled RFIN and the output voltage is available on the SMA connector labelled VOUT.
Product details
| Board Type |
Evaluation Board |
| Kit Contents |
Eval Board AD8362 |
| SVHC |
No SVHC (04-Feb-2026) |
| IC Function |
Power Detector |
| Product Range |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD8362-EVALZ |
| Quantity |
Each |
| Technical Data Sheet (1004.51KB) EN |
View or download |
