Product Overview

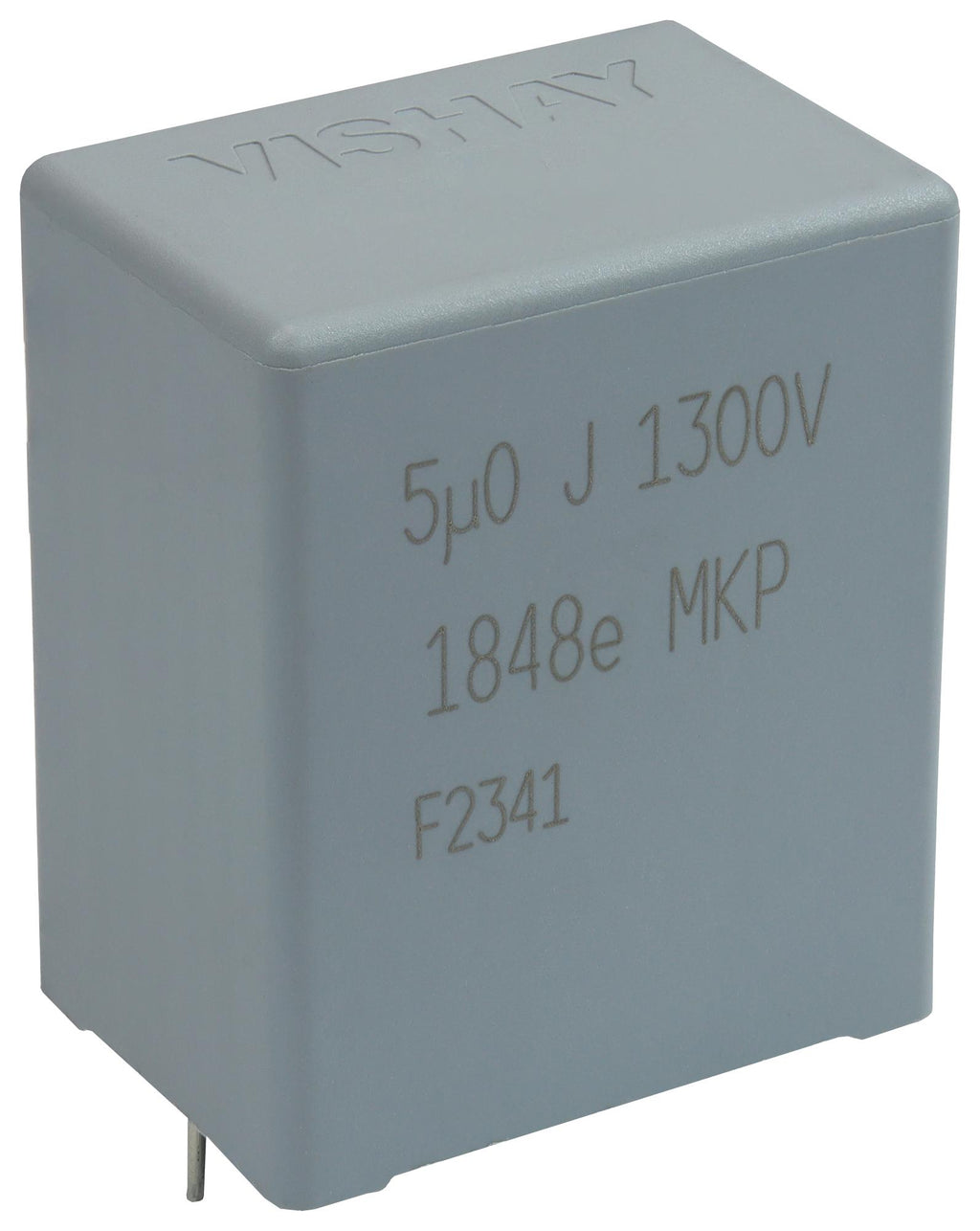

VISHAY MKP1848E63550KP2 Power Film Capacitor, Metallized PP, Radial Box - 2 Pin, 35 µF, ± 10%, DC Link, Through Hole
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
35µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE III (Test Condition A) |
| Lead Spacing |
37.5mm |
| Peak Current |
350A |
| ESR |
0.004ohm |
| Product Length |
42mm |
| Product Height |
35.5mm |
| Output (kvar) |
- |
| Operating Temperature Min |
- |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
500V |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
10V/µs |
| RMS Current (Irms) |
13A |
| Product Diameter |
- |
| Product Width |
18.5mm |
| Ripple Current |
- |
| Product Range |
MKP1848E Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
VISHAY |
| Part Number |
MKP1848E63550KP2 |
| Quantity |
Each |
| Technical Data Sheet (279.26KB) EN |
View or download |
