Product Overview
MULTICOMP PRO MP016553 SMD Chip Resistor, 36 ohm, ± 1%, 6 W, 4527 [11470 Metric], Thick Film, Ultra High Power
Product details
| Resistance |
36ohm |
| Power Rating |
6W |
| Resistor Technology |
Thick Film |
| Product Range |
- |
| Voltage Rating |
300V |
| Product Width |
6.85mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resistance Tolerance |
± 1% |
| Resistor Case / Package |
4527 [11470 Metric] |
| Resistor Type |
Ultra High Power |
| Temperature Coefficient |
± 100ppm/°C |
| Product Length |
11.6mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP016553 |
| Quantity |
Each |
| Technical Data Sheet (712.51KB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

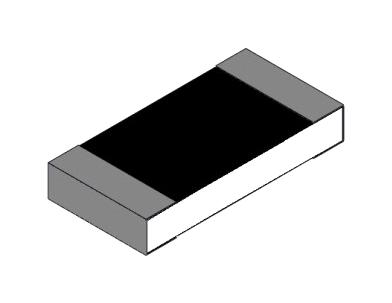

![MULTICOMP PRO MP016553 SMD Chip Resistor, 36 ohm, ± 1%, 6 W, 4527 [11470 Metric], Thick Film, Ultra High Power](http://www.tanotis.com/cdn/shop/files/3266039-40_db69ab90-355f-4c15-9319-58f7f6bcc746_{width}x.jpg?v=1791699322)
