Product Overview

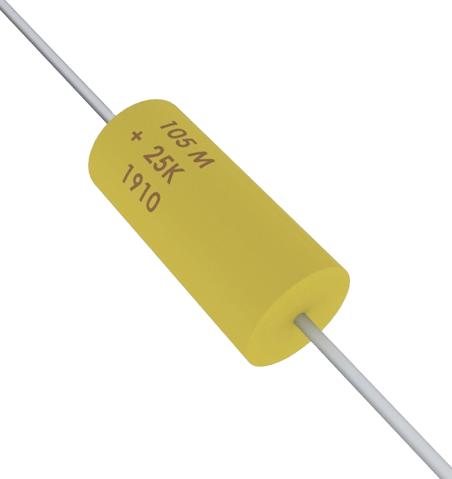

T322E107K010AT is a T322 series, commercial grade, tantalum moulded axial, through-hole capacitor designed specifically for high-speed automatic insertion applications. This capacitor offers an extremely high capacitance-to-volume ratio while still maintaining excellent performance characteristics. Typical applications include decoupling, blocking, bypassing and filtering in commercial computers, data processing, communications and other electronic equipment. This capacitor is well-suited for decoupling required by high speed computers due to its low ESR/impedance at high frequencies.
- 100µF capacitance and ±10% capacitance tolerance
- E case size
- 10V DC voltage rating
- Operating temperature range from -55°C to 125°C
- 100% tin (Sn)- plated termination finish
Product details
| Capacitance |
100µF |
| Capacitance Tolerance |
± 10% |
| Lead Spacing |
- |
| Failure Rate |
- |
| Capacitor Case / Package |
- |
| Product Length |
13.46mm |
| Product Range |
T322 Series |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
10V |
| Capacitor Terminals |
Axial Leaded |
| ESR |
0.8ohm |
| Ripple Current |
- |
| Product Diameter |
7.11mm |
| Product Height |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
