Product Overview

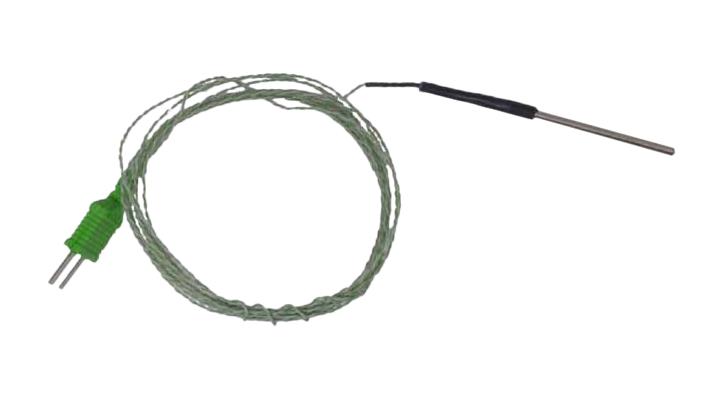

KM07 is a 4mm 'K' type immersion probe. This sensor is constructed using a waterproof stainless steel domed end sensor, this is hermetically sealed allowing- the probe to be suspended within a water storage tank. The probe is supplied with 2m PTFE fine wire with moulded mini plug.
- Stainless steel probe 4mm in diameter by 50mm long : stainless steel 316 (food grade)
- Probe to wire junction sealed using waterproof adhesive lined heat shrink
- Supplied with 2m K type PTFE fine wire with moulded plug
- 0.1secs time response
- High-accuracy type K thermocouple, class I with ±1.5°C or ±0.25% measurement tolerance
- Measurement range from -50 to 250°C
Product details
| Thermocouple Type |
K |
| Measured Temperature Max |
250°C |
| Lead Length - Imperial |
- |
| Probe Length - Imperial |
1.97" |
| Probe Diameter - Imperial |
0.157" |
| Insulation |
PTFE |
| Thermocouple Wire Standard |
- |
| Product Range |
- |
| Measured Temperature Min |
-50°C |
| Sensor Body Material |
Stainless Steel |
| Lead Length - Metric |
- |
| Probe Length - Metric |
50mm |
| Probe Diameter - Metric |
4mm |
| Thermocouple Termination |
Moulded Connector |
| Thermocouple Shielding |
Shielded |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TME |
| Part Number |
KM07 |
| Quantity |
Each |
| Technical Data Sheet (64.21KB) EN |
View or download |
