Product Overview

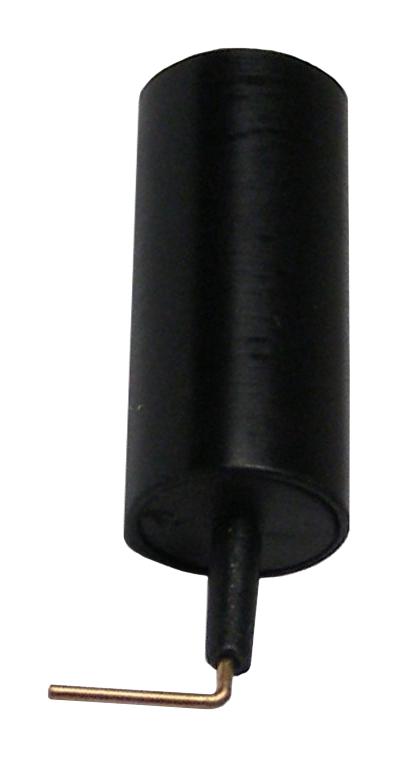

RF SOLUTIONS ANT-4GSM90-BEAD External Antenna, Helical, 900MHz-1.8GHz, Through Hole, 0dBi, 2.5:1 VSWR
Product details
| Antenna Band |
- |
| Frequency Range |
900MHz to 1.8GHz |
| Gain |
0dBi |
| Product Range |
- |
| Antenna Case / Package |
7mm x 22.7mm |
| Operating Temperature Max |
60°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Antenna Type |
Helical |
| VSWR |
2.5:1 |
| Antenna Mounting |
Through Hole |
| Protocol |
GSM |
| Operating Temperature Min |
-20°C |
| Antenna Polarisation |
Vertical, Omnidirectional |
Other details
| Brand |
RF SOLUTIONS |
| Part Number |
ANT-4GSM90-BEAD |
| Quantity |
Each |
| Technical Data Sheet (3.66MB) EN |
View or download |
