Product Overview

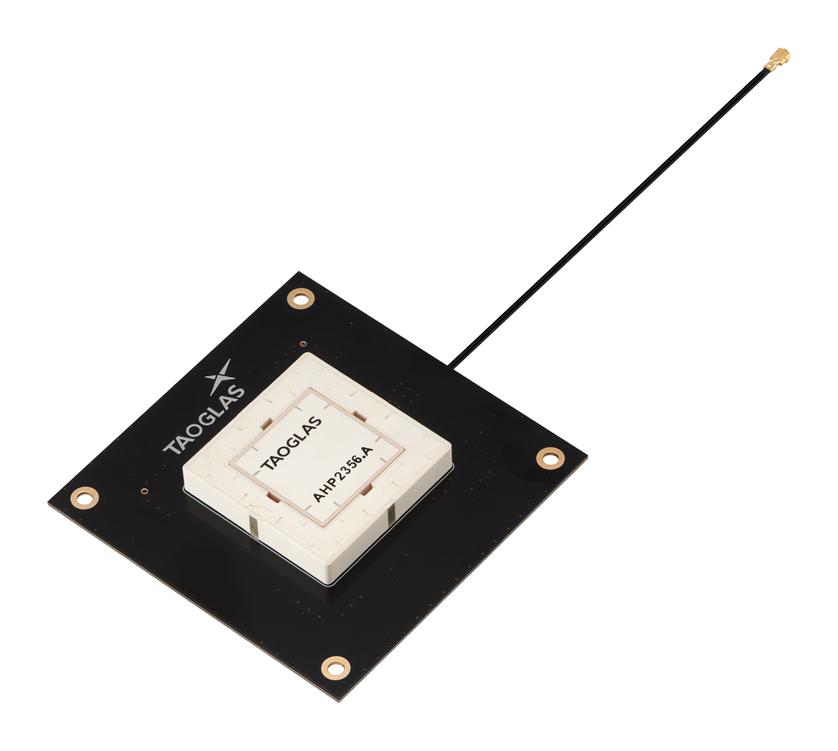

TAOGLAS AHP2356A.07.0100C External Antenna, Patch, 1.602GHz, Multi Band, MHFHT/I-Pex Connector, -1.6dBi, 1.5:1 VSWR
Product details
| Antenna Band |
Multi Band |
| Frequency Range |
1.207GHz, 1.2276GHz, 1.561GHz, 1.57542GHz, 1.602GHz |
| Gain |
-2.69dBi, 1.25dBi, -1.8dBi, 1.6dBi, -1.6dBi |
| Product Range |
- |
| Antenna Case / Package |
35mm x 35mm x 6mm |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Antenna Type |
Patch |
| VSWR |
1.5:1 |
| Antenna Mounting |
MHFHT / I-Pex Connector |
| Protocol |
BeiDou, GPS, GNSS, GLONASS, Galileo, IRNSS, QZSS, SBAS |
| Operating Temperature Min |
-40°C |
| Antenna Polarisation |
Right Hand Circular |
Other details
| Brand |
TAOGLAS |
| Part Number |
AHP2356A.07.0100C |
| Quantity |
Each |
| Technical Data Sheet (56.00B) EN |
View or download |
