Product Overview

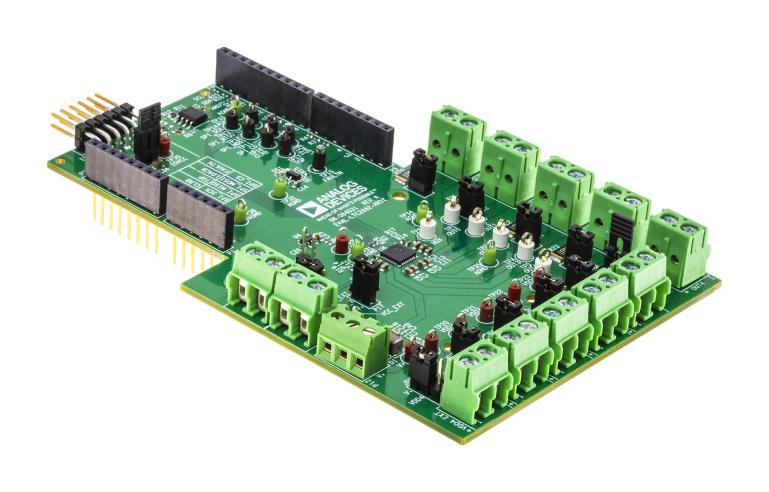

EVAL-LTC2662-ARDZ is an evaluation board for the LTC2662 5-channel, 300mA current-source-output 16-Bit SoftSpan DAC. The device features per-channel SoftSpan™ configuration of 3.125mA to 300mA, a separate supply for each output, and an internal switch to allow any output pin to be connected to V-. The LTC2662 operates on 2.8V to 33V VDD supplies and includes a 1.25V internal low noise reference. The evaluation board connects to a PC via SDP-K1 board or directly to microcontrollers via a PMOD connection (requiring SDP-K1 disconnection).
- Full featured evaluation board for the LTC2662
- PC control in conjunction with the EVAL-SDP-CK1Z board
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Data Converter |
| Kit Contents |
Evaluation Board LTC2662 |
| SVHC |
No SVHC (04-Feb-2026) |
| Silicon Core Number |
LTC2662 |
| Application Sub Type |
Current Output DAC |
| Product Range |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
EVAL-LTC2662-ARDZ |
| Quantity |
Each |
| Technical Data Sheet (459.27KB) EN |
View or download |
