Product Overview

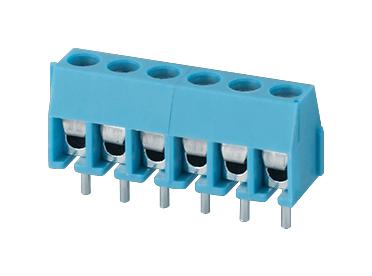

SAME SKY TB0011-350-06BE Wire-To-Board Terminal Block, Blue, 3.5 mm, 6 Ways, 24 AWG, 18 AWG, 1 mm², Screw
Product details
| Pitch Spacing |
3.5mm |
| Wire Size AWG Min |
24AWG |
| Conductor Area CSA |
1mm² |
| Rated Current |
10A |
| Block Orientation |
Through Hole Right Angle |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Positions |
6Ways |
| Wire Size AWG Max |
18AWG |
| Wire Connection Method |
Screw |
| Rated Voltage |
250V |
| Product Range |
TB0011-350 Series |
Other details
| Brand |
SAME SKY |
| Part Number |
TB0011-350-06BE |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
