Product Overview

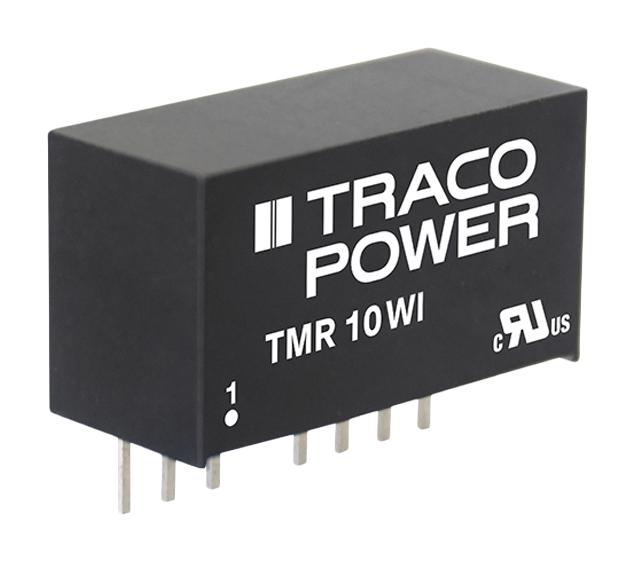

TMR 10-4823WI is a TMR 10WI series, 10W DC/DC converter module with regulated output, featuring wide 4:1 input voltage ranges. The product offers a very high power density of 3.89W/cm³ in an ultra-compact SIP-8 package occupying only 2cm² (0.3 square inch) of board space. Further features include remote on/off control, continuous short circuit protection and an I/O isolation voltage of 1500V DC. The very compact dimension of this converter makes it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
- Input voltage range from 18 - 75V DC(48V DC nom)
- Output 1: +15V DC Vnom, 333mA Imax and output 2: -15V DC Vnom, 333mA Imax
- 89% typ efficiency
- Natural convection (20LFM) cooling system
- Flyback converter regulator topology
- Switching frequency range from 390 to 450kHz (PWM) and 420kHz typ (PWM)
- Functional insulation system
- Plastic (UL 94 V-0 rated) housing, silicone (UL 94 V-0 rated) potting, phosphor bronze (C5191) pin
- 3-year product warranty
- Operating temperature range from -40°C to +70°C (without derating)
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
4:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
333mA |
| Output Current - Output 2 |
333mA |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
9.6mm |
| Input Voltage DC Min |
18V |
| Product Range |
TMR 10WI Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
10W |
| Output Voltage - Output 1 |
15V |
| Output Voltage - Output 2 |
-15V |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
48V |
| Width |
12mm |
| Depth |
21.8mm |
| Input Voltage DC Max |
75V |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
TRACO POWER |
| Part Number |
TMR 10-4823WI |
| Quantity |
Each |
| Technical Data Sheet (864.52KB) EN |
View or download |
