Product Overview

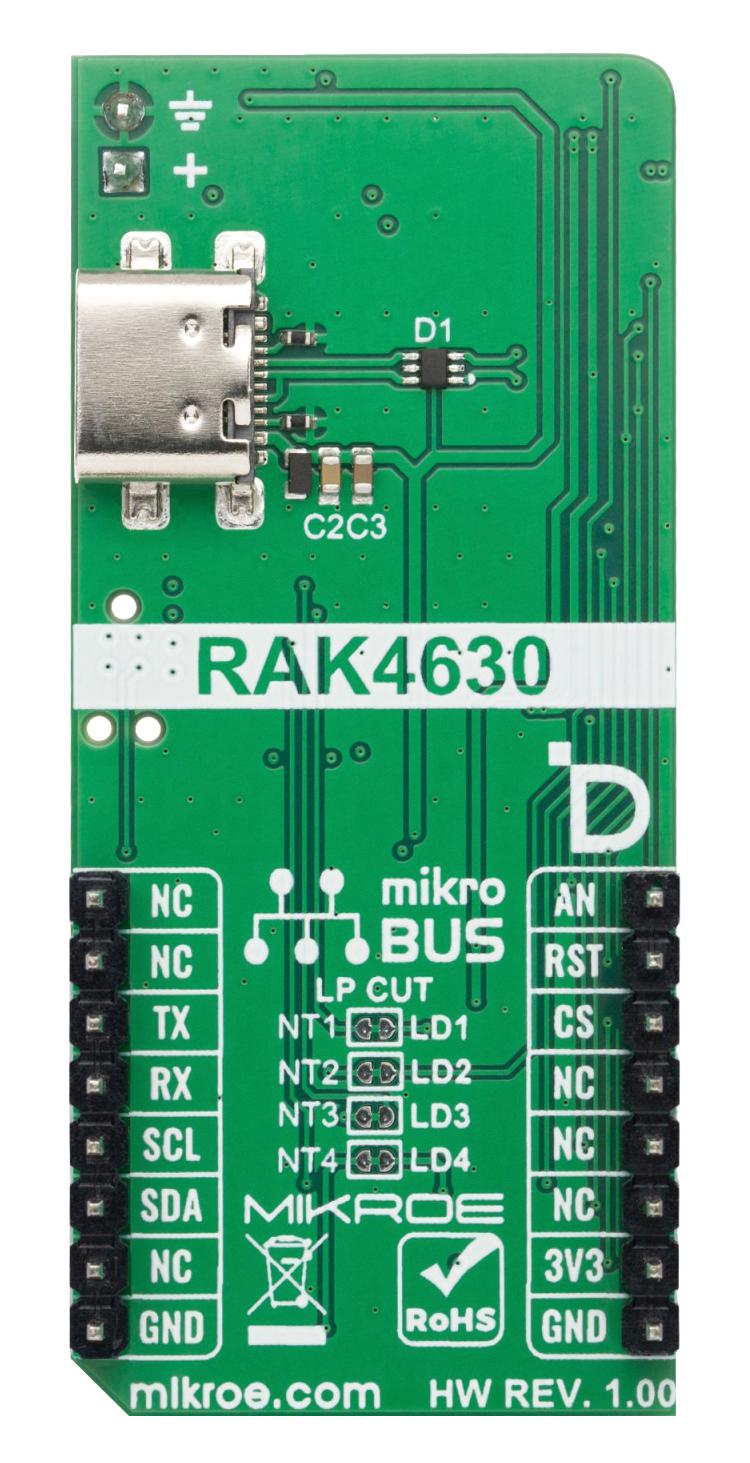

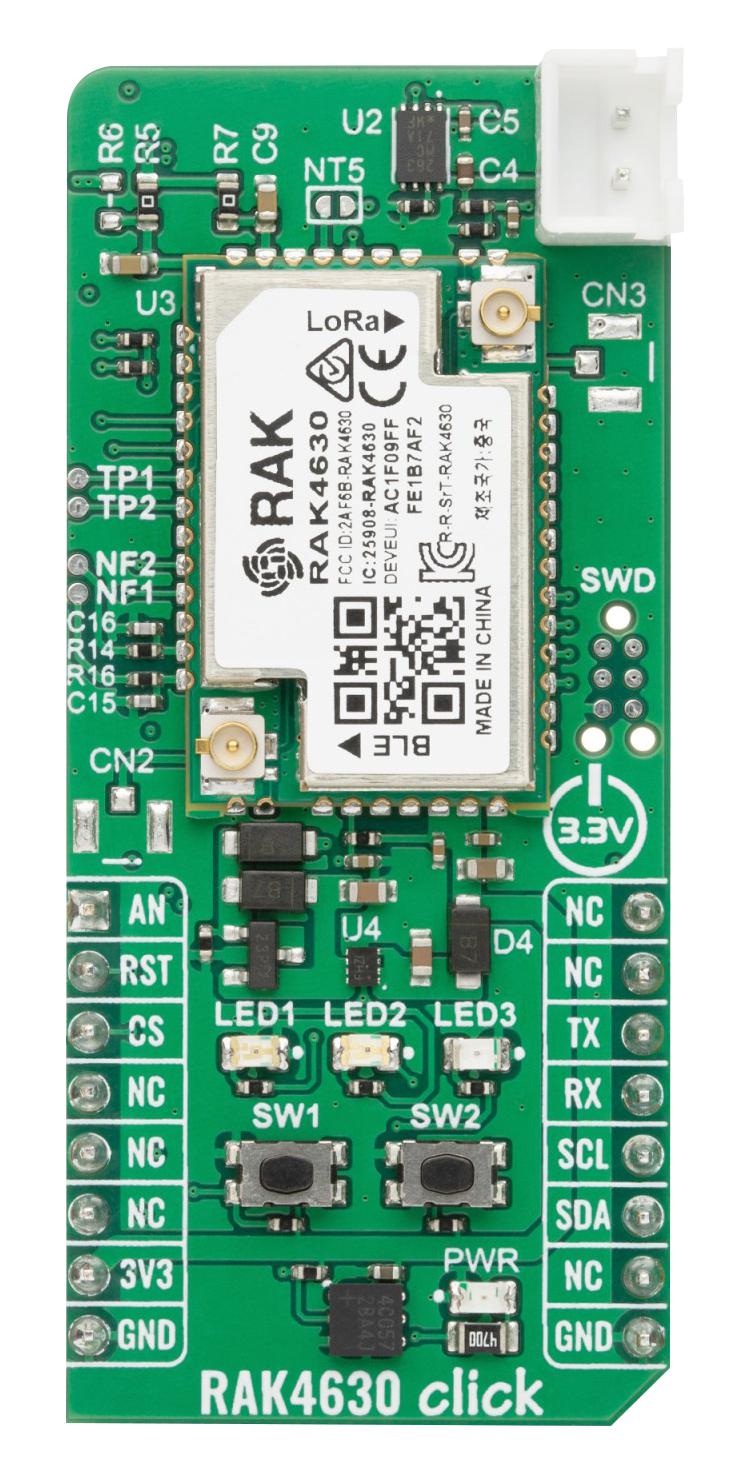

MIKROE-6626 is a RAK4630 Click compact add-on board that provides dual-mode wireless connectivity by combining long-range LoRaWAN communication and Bluetooth Low Energy (BLE) for low-power IoT applications. It is based on the RAK4630 module from RAKwireless, which integrates the Nordic nRF52840 MCU with Bluetooth 5.0 support and the Semtech SX1262 LoRa transceiver. The board supports LoRaWAN Classes A, B, and C, LoRa Point-to-Point (P2P) communication, and BLE 5.0 transmission power from -20 to +4dBm, operating in the 868MHz band with up to +22dBm LoRa output. The RAK4630 Click is ideal for IoT gateways, remote sensor networks, smart building automation, asset tracking, and energy-efficient wireless monitoring systems. RAK4630 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard.
- I2C, UART, USB interface
- Click board size L is 57.15 x 25.4mm
- Input voltage is 3.3V
Product details
| Accessory Type |
RAK4630 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-6626 |
| Quantity |
Each |
| Technical Data Sheet (1.16MB) EN |
View or download |
