Product Overview
Also known as
B25696H947K901
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
940µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
32mm |
| Peak Current |
6.8kA |
| ESR |
1100µohm |
| Product Length |
- |
| Product Height |
176mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Can |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Stud Mount - M12 |
| Voltage(DC) |
900V |
| Capacitor Terminals |
Screw |
| dv/dt Rating |
- |
| RMS Current (Irms) |
90A |
| Product Diameter |
100mm |
| Product Width |
- |
| Ripple Current |
- |
| Product Range |
B25696H Series |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TDK |
| Part Number |
B25696H0947K901 |
| Quantity |
Each |
| Technical Data Sheet (820.09KB) EN |
View or download |

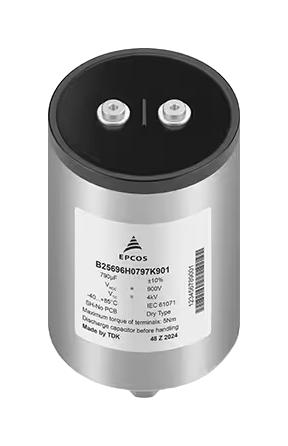

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
