Product Overview

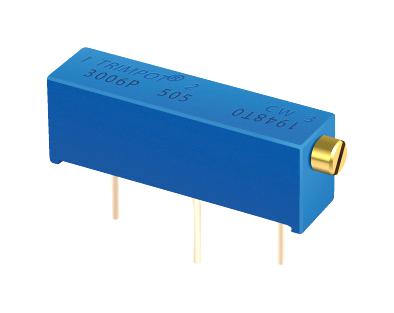

BOURNS 3006P-1-103ZLF Trimmer, Multi Turn, Cermet, Side Adjust, 10 kohm, Through Hole, 15 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Side Adjust |
| Potentiometer Mounting |
Through Hole |
| Product Range |
3006 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
3/4 Inch Rectangular |
| Product Length |
19.05mm |
| Product Height |
6.35mm |
| Operating Temperature Max |
125°C |
| SVHC |
Lead (04-Feb-2026) |
| Element Material |
Cermet |
| Track Resistance |
10kohm |
| No. of Turns |
15Turns |
| Power Rating |
750mW |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Case / Package |
- |
| Product Width |
4.83mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
Other details
| Brand |
BOURNS |
| Part Number |
3006P-1-103ZLF |
| Quantity |
Each |
| Technical Data Sheet (505.94KB) EN |
View or download |
