Product Overview

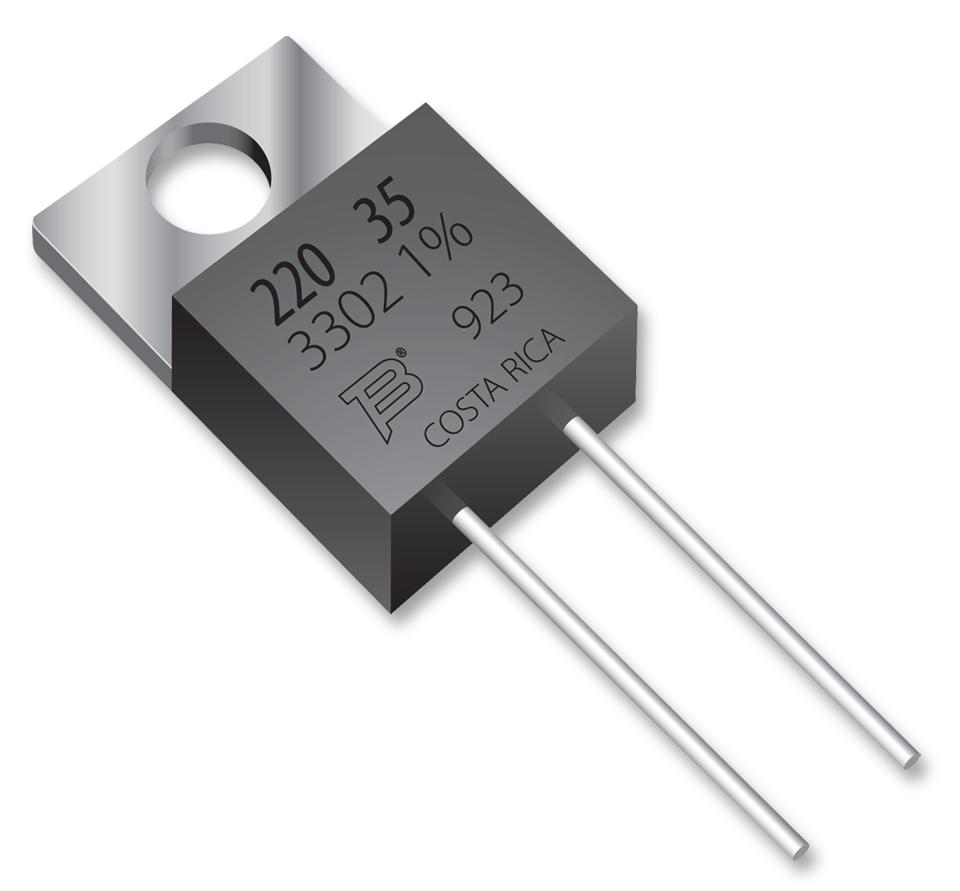

BOURNS PWR220T-35-2R00F Through Hole Resistor, 2 ohm, PWR220T-35 Series, 35 W, ± 1%, TO-220 (D2PAK)
Product details
| Resistance |
2ohm |
| Power Rating |
35W |
| Resistor Case / Package |
TO-220 (D2PAK) |
| Resistor Technology |
Thick Film |
| Resistor Type |
High Power |
| Product Length |
10.1mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Product Range |
PWR220T-35 Series |
| Resistance Tolerance |
± 1% |
| Voltage Rating |
- |
| Temperature Coefficient |
± 100ppm/°C |
| Product Diameter |
- |
| Product Width |
14.6mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
BOURNS |
| Part Number |
PWR220T-35-2R00F |
| Quantity |
Each |
| Technical Data Sheet (518.20KB) EN |
View or download |
