Product Overview

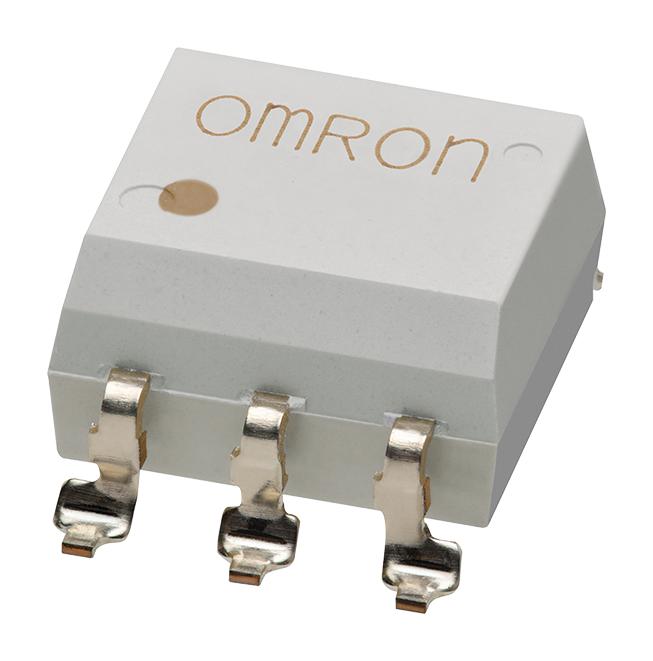

G3VM-63ER is a G3VM series, MOSFET relay. It is used in applications such as industrial equipment (PLC, temperature controller, power supply, etc.), security equipment, test and measurement equipment, and communication equipment.
- 60V load voltage, 1b (SPST-NC) contact form
- DIP 6-pin with surface-mounting terminals
- Low ON resistance
- 1.27V typical LED forward voltage at (IF = 10mA)
- Reverse current is 10μA maximum at (VR = 6V)
- Capacitance between terminals is 70pF typical at (V = 0V, f = 1MHz)
- Trigger LED forward current is 0.3mA typical at (IOFF = 10μA)
- Turn-on time is 2ms typical at (F = 5mA, RL = 200 ohm, VDD = 20V)
- Ambient operating temperature range from -40°C to +110°C
Product details
| Contact Form |
SPST-NC (1 Form B) |
| Load Voltage Max |
60V |
| MOSFET Relay Package Style |
DIP-6 |
| Relay Terminals |
Gull Wing |
| Isolation Voltage |
5kV |
| Off State Leakage Current Max |
10µA |
| SVHC |
No SVHC (25-Jun-2025) |
| Load Type |
AC / DC |
| Load Current |
1.2A |
| Relay Mounting |
Surface Mount |
| On State Resistance Max |
0.6ohm |
| I/O Capacitance Typ |
0.9pF |
| Product Range |
G3VM Series |
Other details
| Brand |
ARATAS |
| Part Number |
G3VM-63ER |
| Quantity |
Each |
| Technical Data Sheet (2.09MB) EN |
View or download |
