Product Overview

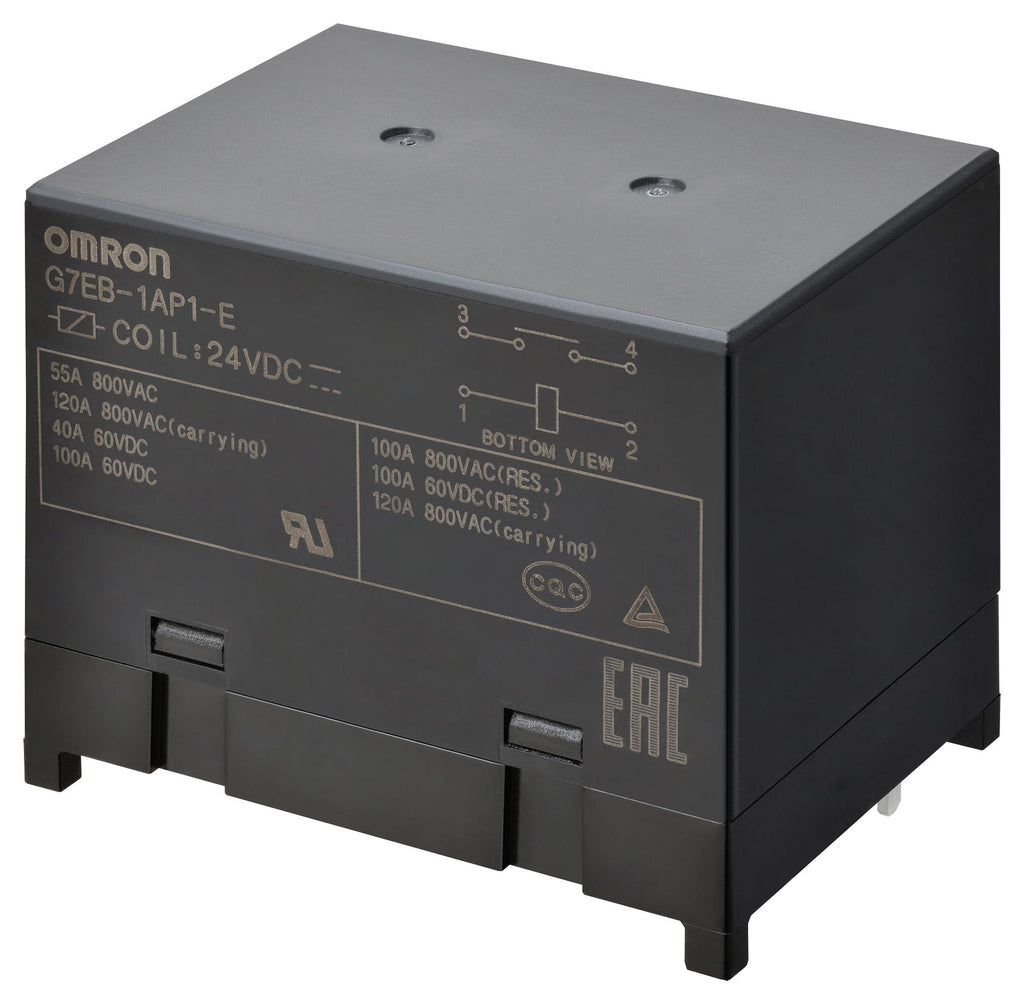

G7EB-1AP1-E DC12 is a G7EB series high-capacity PCB power relay capable of 800V AC, 120A (high-capacity) electrification.
- 12V DC rated voltage, 800V AC/60V DC maximum switching voltage, 100A maximum switching current
- Capable of 480V AC/100A high-capacity switching
- 1-pole, SPST-NO (1a) contact form
- Flux protection
- High impulse withstand voltage is 10kV
- Contact gap is greater than or equal to 3.6mm (applied to VDE0126)
- Low initial contact resistance is lesser than or equal to 5mohm
- Special terminal type
- 2.8W power consumption
- Ambient temperature range from -40 to 85°C
Product details
| Contact Configuration |
SPST-NO |
| Contact Current |
100A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
480V |
| Contact Voltage VDC |
60V |
| Coil Resistance |
51ohm |
| Coil Voltage |
12VDC |
| Product Range |
G7EB Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Alloy, Cadmium Free |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ARATAS |
| Part Number |
G7EB-1AP1-E DC12 |
| Quantity |
Each |
| Technical Data Sheet (1.48MB) EN |
View or download |
