Product Overview

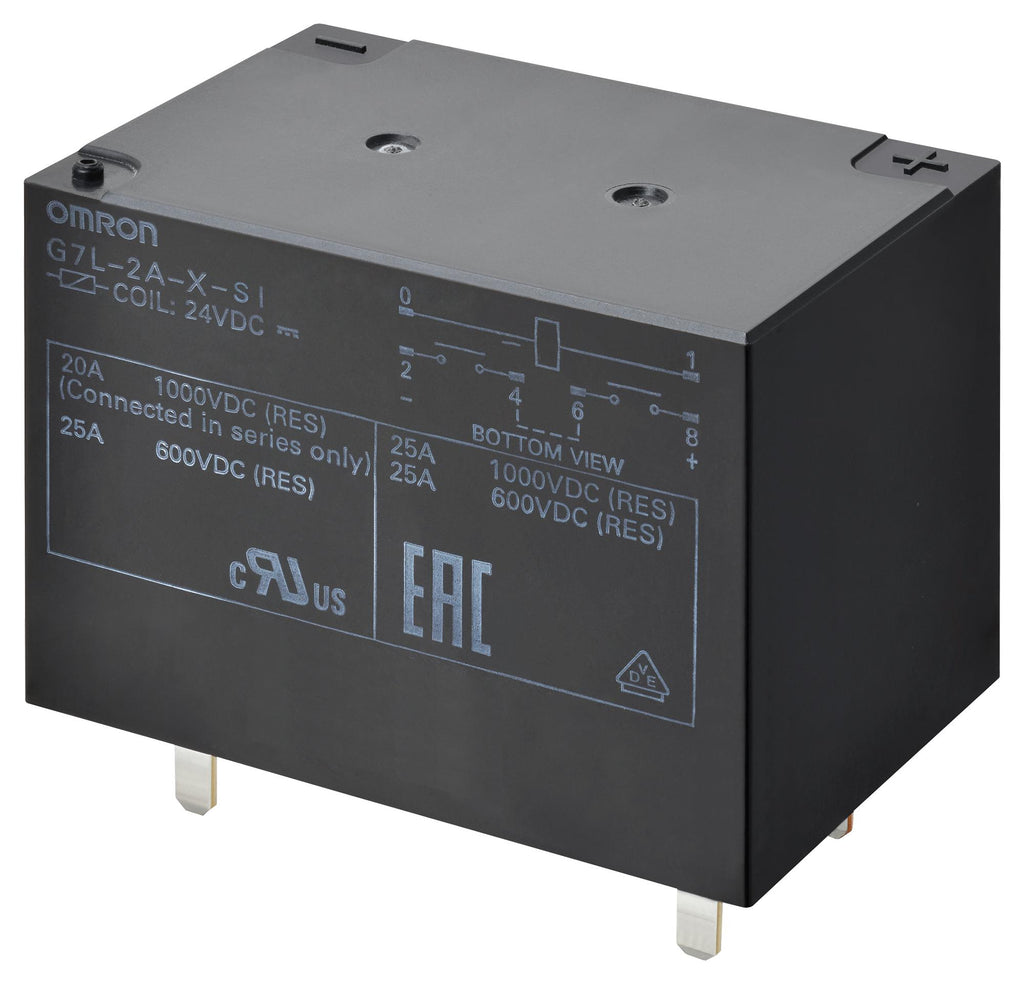

G7L-2A-X-SI DC24 is a G7L-X series compact power relay capable of switching 1,000V DC loads. The DC high-capacity switching for both normal and reverse polarity is available with the addition of the reverse polarity specification. Typical applications include photovoltaic power systems, energy storage systems, inverters, UPS, and FA DC link.
- Low initial contact resistance (10mohm)
- Bidirectional switching with arc cut-off
- Capable of supporting high capacity DC loads
- Reduces heat generation due to contact resistance
- Lower heat generation results in a lesser need for materials such as heat sinks
- Eliminates the need for two relays in the case of DC forward/reverse currents
- Swift extinguishing of arc provides a safer switching of high DC voltage loads
- UL and EN conformed
- 24V DC rated coil voltage, DPST-NO contact form
- Ambient operating temperature range from -40°C to 85°C (with no icing or condensation)
Product details
| Contact Configuration |
DPST-NO |
| Contact Current |
30A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
- |
| Contact Voltage VDC |
600V |
| Coil Resistance |
63ohm |
| Coil Voltage |
24VDC |
| Product Range |
G7L-X Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Alloy |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ARATAS |
| Part Number |
G7L-2A-X-SI DC24 |
| Quantity |
Each |
| Technical Data Sheet (106.36KB) EN |
View or download |
