Product Overview

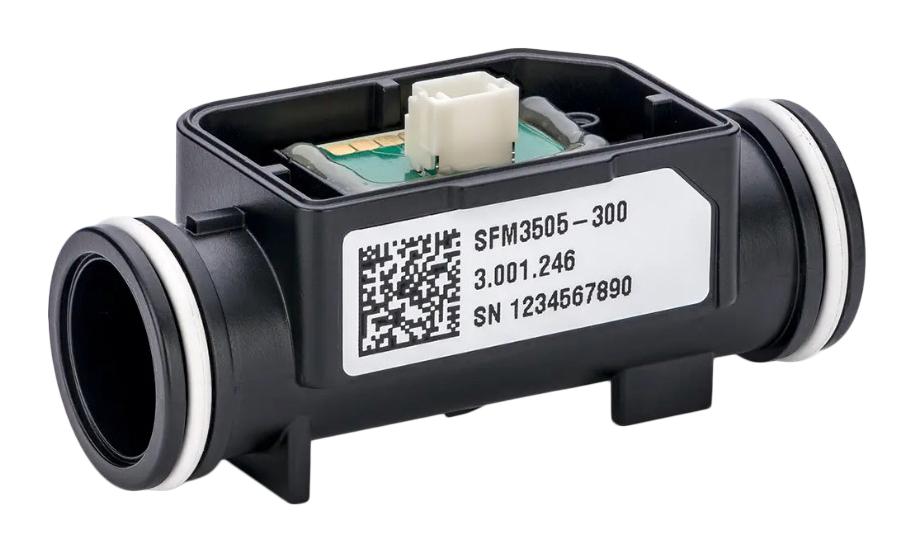

SENSIRION SFM3505-300-X Gas Flow Sensor, High Accuracy, Mass Flow Meter, 1.65 bar, -150 to 300 l/min, I2C, 3.2 to 3.4 V
Product details
| Sensor Type |
Mass Flow Meter |
| Flow Rate Max |
300l/min |
| Operating Pressure Max |
1.65bar |
| Supply Voltage Max |
3.4V |
| Sensor Output Type |
I2C Digital |
| Process Connection Size |
- |
| Pipe Size |
- |
| Operating Temperature Min |
-20°C |
| Product Range |
SFM3505 Series |
| Flow Rate Min |
-150l/min |
| Operating Pressure Min |
- |
| Supply Voltage Min |
3.2V |
| Accuracy |
± 1.5% |
| Media Type |
Air, Nitrogen, Oxygen, Non-Aggressive Gases |
| Process Connection Type |
- |
| Sensor Mounting |
- |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SENSIRION |
| Part Number |
SFM3505-300-X |
| Quantity |
Each |
| Technical Data Sheet (634.45KB) EN |
View or download |
