Product Overview

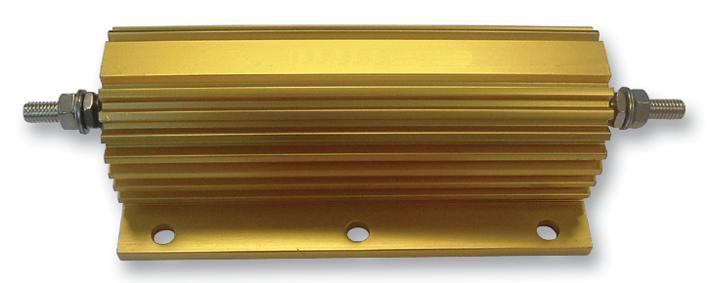

TT ELECTRONICS / WELWYN WH50-6R8FI Resistor, 6.8 ohm, WH Series, 50 W, ± 1%, Solder Lug, 1.25 kV
Product details
| Resistance |
6.8ohm |
| Power Rating |
50W |
| Resistor Terminals |
Solder Lug |
| Resistor Technology |
Wirewound |
| Resistor Type |
High Power |
| Product Length |
51mm |
| Product Height |
16mm |
| Operating Temperature Max |
200°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Product Range |
WH Series |
| Resistance Tolerance |
± 1% |
| Voltage Rating |
1.25kV |
| Temperature Coefficient |
± 75ppm/°C |
| Resistor Mounting |
Panel Mount |
| Product Width |
30mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
TT ELECTRONICS / WELWYN |
| Part Number |
WH50-6R8FI |
| Quantity |
Each |
| Technical Data Sheet (886.12KB) EN |
View or download |
