Product Overview

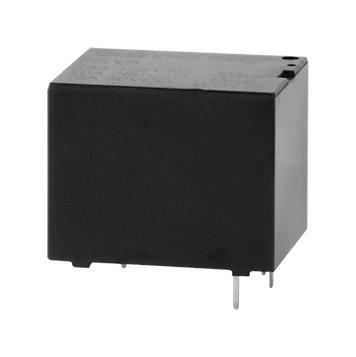

PRY3-9V-360-1C-E is a PRY3 series power relay.
- Class A coil insulation system, epoxy sealed
- 9V DC typical coil voltage
- 225ohm ±10% coil resistance
- 6.75V DC min operating voltage
- 0.45V DC max release voltage
- 0.36W typical coil power
- Ag alloy contact material
- UL/cUL 508 safety approvals
- Operating temperature range from -40 to 105°C
- 100Mohm min insulation resistance at 500V DC
Product details
| Contact Configuration |
SPDT |
| Contact Current |
10A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
30V |
| Contact Voltage VDC |
- |
| Coil Resistance |
225ohm |
| Coil Voltage |
9VDC |
| Product Range |
PRY3 Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Alloy |
| SVHC |
To Be Advised |
Other details
| Brand |
SAME SKY |
| Part Number |
PRY3-9V-360-1C-E |
| Quantity |
Each |
| Technical Data Sheet (56.00B) EN |
View or download |
