Product Overview

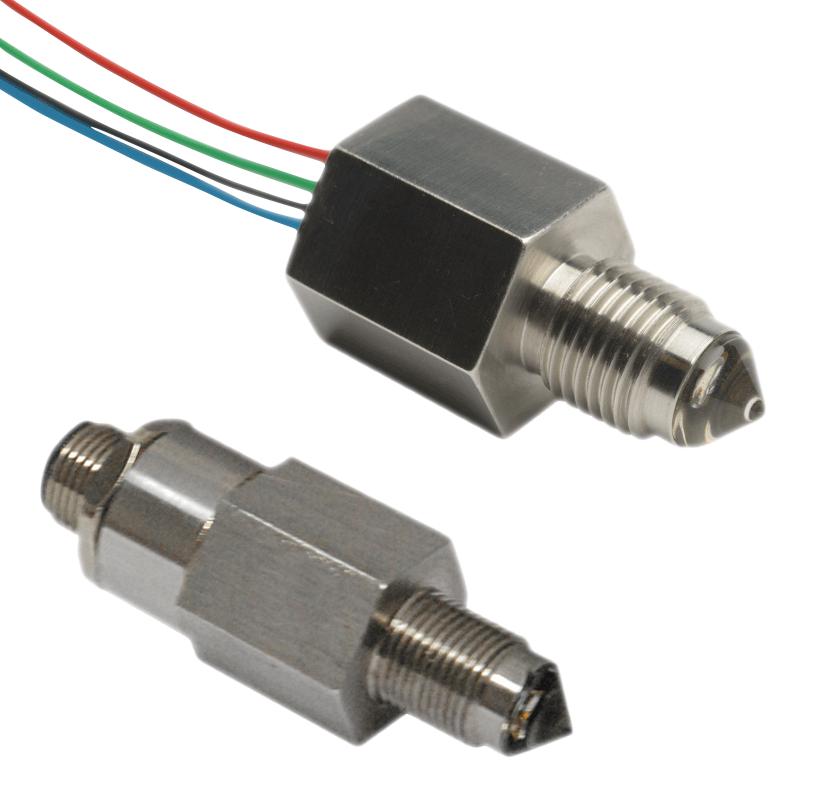

LLG710D3L24-004 is an Optomax industrial glass series (LLG series), liquid level switch that can detect the presence or absence of oil or water based liquids. Suitable for tank level control; fill/empty, leak detection, pump control, sump level switching and overfill protection applications.
- 1/4” NPT housing thread
- Low in air output
- 8 to 30V DC supply voltage
- Supply current (ls) is 7.5mA max (Vs = 30V DC)
- P - type output
- Flying leads 20AWG 0.2mm termination
- Corrosion resistant, 316L stainless steel housing with hardened glass tip for harsh environments
- Direct high current switching
- Direct load drive design
- Operating temperature range from -40°C to +125°C (-40°F to +257°F)
Product details
| Level Switch Type |
Liquid Level Switch |
| Process Connection Type |
1/4" NPT |
| Housing Material |
316L Stainless Steel |
| Electrical Connection |
Flying Leads |
| Supply Voltage Max |
30VDC |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Media Type |
Oil, Water |
| Operating Pressure Max |
600bar |
| Switch Output |
PNP |
| Supply Voltage Min |
0 |
| Operating Temperature Min |
-40°C |
| Product Range |
Optomax LLG Series |
Other details
| Brand |
SST |
| Part Number |
LLG710D3L24-004 |
| Quantity |
Each |
| Technical Data Sheet (1.02MB) EN |
View or download |
