Product Overview

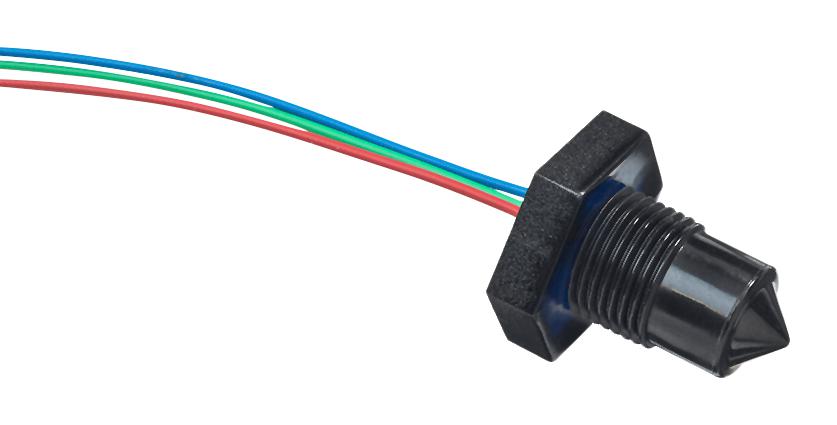

LLC610D3LSH is an Optomax digital series, liquid level switch. This switch can detect almost any liquid type, oil or water based.
- Compact design
- Polysulfone housing material
- Type 6 1/2”-20 UNF housing
- Operating temperature range from -40°C to +125°C
- Low in air output (Vout = 0V + 0.5V max)
- Low power and low cost
- Supply voltage (Vs) range from 4.5V DC to 15.4V DC
- 100mA output sink and source current (lout)
Product details
| Level Switch Type |
Liquid Level Switch |
| Process Connection Type |
1/2"-20 UNF |
| Housing Material |
Polysulfone |
| Electrical Connection |
Wire Lead |
| Supply Voltage Max |
15.4VDC |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Media Type |
Oil, Water |
| Operating Pressure Max |
101psi |
| Switch Output |
Push-Pull |
| Supply Voltage Min |
4.5VDC |
| Operating Temperature Min |
-40°C |
| Product Range |
Optomax LLC Series |
Other details
| Brand |
SST |
| Part Number |
LLC610D3LSH |
| Quantity |
Each |
| Technical Data Sheet (1002.00KB) EN |
View or download |
