Product Overview

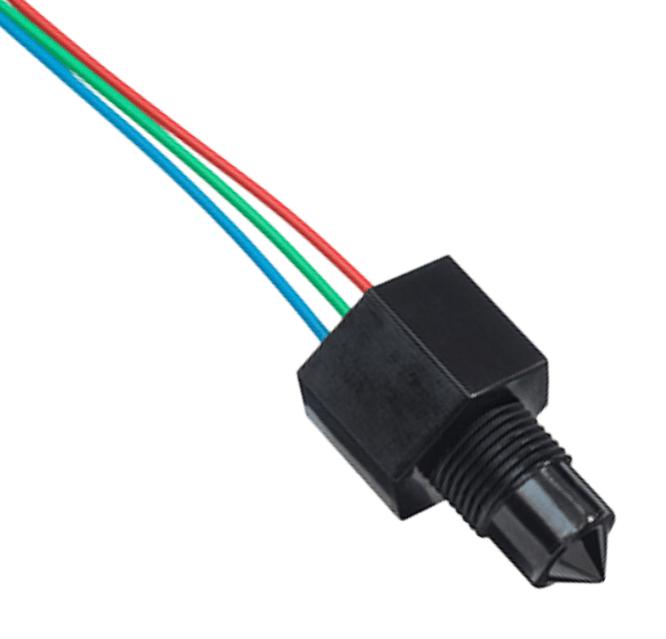

LLC610D324-003 is an Optomax industrial series, liquid level switch that can detect almost any liquid type of oil or water based. Suitable for valve/pump control, leak detection, tank level control; fill/empty, overfill protection and sump level switching applications.
- Polysulfone housing material
- Type 6 1/2” - 20 UNF housing type
- Operating temperature range from -40°C to +125°C
- Low in air output (Vout = 0V + 0.7V max)
- Supply voltage range from 8 to 30V DC
- N- type output
- 20AWG 0.2mm flying leads termination
- Protected against damage from transient and reverse polarity voltages
- Direct load driven design
- Intelligent switching
Product details
| Level Switch Type |
Liquid Level Switch |
| Process Connection Type |
1/2"-20 UNF |
| Housing Material |
Polysulfone |
| Electrical Connection |
Flying Leads |
| Supply Voltage Max |
30VDC |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Media Type |
Oil, Water |
| Operating Pressure Max |
290psi |
| Switch Output |
NPN |
| Supply Voltage Min |
0 |
| Operating Temperature Min |
-40°C |
| Product Range |
Optomax LLC Series |
Other details
| Brand |
SST |
| Part Number |
LLC610D324-003 |
| Quantity |
Each |
| Technical Data Sheet (745.01KB) EN |
View or download |
