Product Overview
PSK-5E-3 is a PSK-5E series, encapsulated, internal AC-DC power supply. This module features a wide operating temperature range of -40 to 85°C, making it ideal for rugged and demanding applications.
- Universal input 85 to 305V AC & 100 to 430V DC
- 3.3V DC output voltage and 1.515A output current
- 5W max output power
- 120mVp-p max ripple and noise
- 72% typical efficiency
- Class B emissions (EN55032/CISPR) with application circuit and certified to IEC/EN/UL 62368-1
- 4000V AC isolation voltage
- 2,000m operating altitude
- Short circuit, overcurrent protection and input undervoltage protection
- Class II safety class and OVC III
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
5W |
| Output Current - Output 1 |
1.515A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
85V AC to 305V AC |
| Height |
17.6mm |
| Product Range |
PSK-5E Series |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
3.3V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Width |
25.4mm |
| Depth |
25.4mm |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
CUI |
| Part Number |
PSK-5E-3 |
| Quantity |
Each |
| Technical Data Sheet (1.47MB) EN |
View or download |

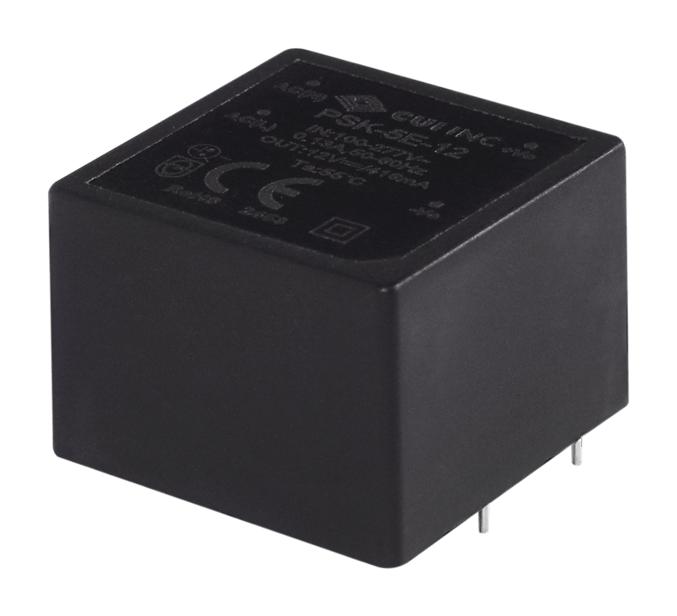

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
