Product Overview

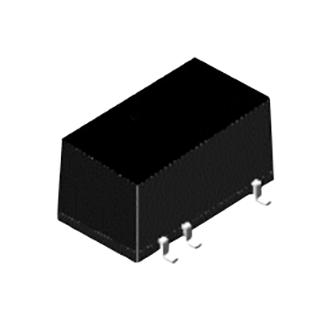

PULSE ELECTRONICS SA1-0512H LF Isolated Surface Mount DC/DC Converter, ITE, Surface Mount Device, 1 W, 1 Output, 12 VDC
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
84mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
7.6mm |
| Input Voltage DC Min |
- |
| Product Range |
SA1 Series |
| DC / DC Converter Type |
Surface Mount Device |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
12VDC |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
- |
| Width |
8.4mm |
| Depth |
15.2mm |
| Input Voltage DC Max |
5VDC |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
SA1-0512H LF |
| Quantity |
Each |
| Technical Data Sheet (757.49KB) EN |
View or download |
