Product Overview

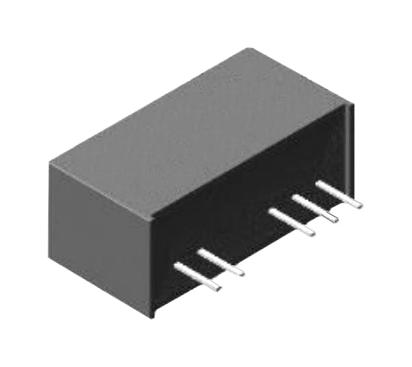

PULSE ELECTRONICS HBA2-24D2H6 Isolated Through Hole DC/DC Converter, ITE, SIP, 2 W, 2 Output, 12 V
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
85mA |
| Output Current - Output 2 |
-85mA |
| Isolation Voltage |
6kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
12.5mm |
| Input Voltage DC Min |
21.6V |
| Product Range |
HBA2 Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
2W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
- |
| Input Voltage DC Nom |
24V |
| Width |
9.8mm |
| Depth |
19.5mm |
| Input Voltage DC Max |
26.4V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
HBA2-24D2H6 |
| Quantity |
Each |
