Product Overview

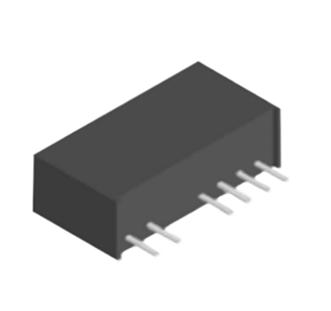

PULSE ELECTRONICS DKB1-05D2PH3 Isolated Through Hole DC/DC Converter, ITE, SIP, 1 W, 2 Output, 12 V
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
42mA |
| Output Current - Output 2 |
-42mA |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.1mm |
| Input Voltage DC Min |
4.5V |
| Product Range |
DKB1 Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
5V |
| Width |
6mm |
| Depth |
19.6mm |
| Input Voltage DC Max |
5.5V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
DKB1-05D2PH3 |
| Quantity |
Each |
