Product Overview

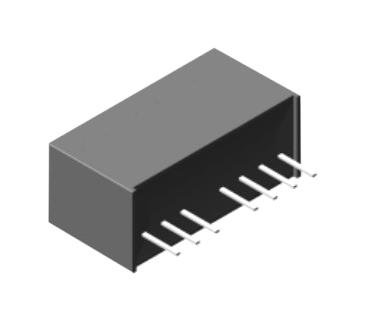

PULSE ELECTRONICS BEA3-24S2W Isolated Through Hole DC/DC Converter, ITE, SIP, 6 W, 1 Output, 12 V
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
250mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.6kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
11.2mm |
| Input Voltage DC Min |
9V |
| Product Range |
BEA3 Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
6W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
- |
| Input Voltage DC Nom |
24V |
| Width |
9.2mm |
| Depth |
21.9mm |
| Input Voltage DC Max |
36V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
BEA3-24S2W |
| Quantity |
Each |
