Product Overview

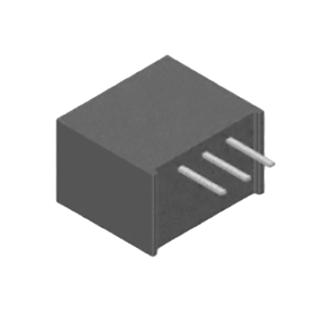

PULSE ELECTRONICS B78E03-0R5-R3 Non Isolated POL DC/DC Converter, ITE, DIP, 1 Output, 1.65 W, 3.3 V, 500 mA
Product details
| Power Supply Applications |
ITE |
| No. of Outputs |
1 Output |
| Output Voltage Nom |
3.3V |
| DC / DC Converter Output Type |
Fixed |
| Input Voltage DC Min |
6V |
| Depth |
11.6mm |
| Height |
10.2mm |
| SVHC |
No SVHC (04-Feb-2026) |
| DC / DC Converter Type |
DIP |
| Output Power Max |
1.65W |
| Output Current Max |
500mA |
| DC / DC Converter Mounting |
Through Hole |
| Input Voltage DC Max |
30V |
| Width |
7.5mm |
| Product Range |
B78E Series |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
B78E03-0R5-R3 |
| Quantity |
Each |
| Technical Data Sheet (434.48KB) EN |
View or download |
