Product Overview

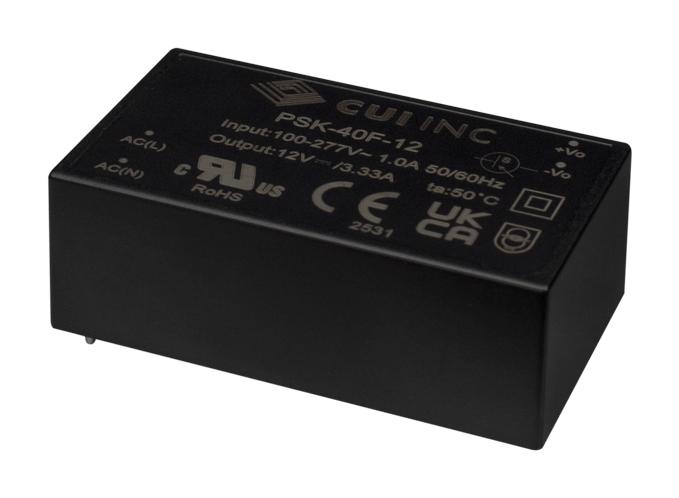

PSK-40F-12 is a PSK-40F series, encapsulated, internal AC-DC power supply. This module features a wide operating temperature range of -40 to 85°C, making it ideal for many applications.
- Universal input 85 to 305V AC & 100 to 430V DC
- 12V DC output voltage and 3.33A output current
- 40W max output power
- 150mVp-p max ripple and noise
- 90% typical efficiency
- CISPR32/EN55032 Class B with application circuit and certified to UL/EN/IEC 62368-1
- 4000V AC isolation voltage
- 2,000m operating altitude
- Short circuit, undervoltage and overcurrent protection
- Class II safety class and OVC III
Product details
| Power Supply Applications |
ITE & Household |
| Output Power Max |
40W |
| Output Current - Output 1 |
3.33A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
85V AC to 305V AC |
| Height |
24mm |
| Product Range |
PSK-40F Series |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Width |
39mm |
| Depth |
69.5mm |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
CUI |
| Part Number |
PSK-40F-12 |
| Quantity |
Each |
| Technical Data Sheet (1.56MB) EN |
View or download |
