Product Overview
DDP2-12-S24-M is a DDP2-M series DC-DC converter housed in a SMT-8 package. This series carries a temperature range of -40 to 105°C, making it a reliable option for ITE applications.
- Input voltage range from 10.8 to 13.2V DC and 12V DC (typ)
- Single unregulated voltage is 24V DC
- Single unregulated max output current is 84mA
- Max isolated output power is 2W
- Max ripple & noise 150mVp-p
- Typical efficiency is 89%
- Compact SMT package
- 1500V DC isolation voltage
- Certified to IEC/EN/UL 62368-1
- Continuous short circuit protection
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
2W |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
12V |
| Width |
10.8mm |
| Depth |
12.8mm |
| Input Voltage DC Max |
13.2V |
| SVHC |
No SVHC (25-Jun-2025) |
| DC / DC Converter Type |
Surface Mount DIP |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
84mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
6.9mm |
| Input Voltage DC Min |
10.8V |
| Product Range |
DDP2-M Series |
Other details
| Brand |
CUI |
| Part Number |
DDP2-12-S24-M |
| Quantity |
Each |
| Technical Data Sheet (1.11MB) EN |
View or download |

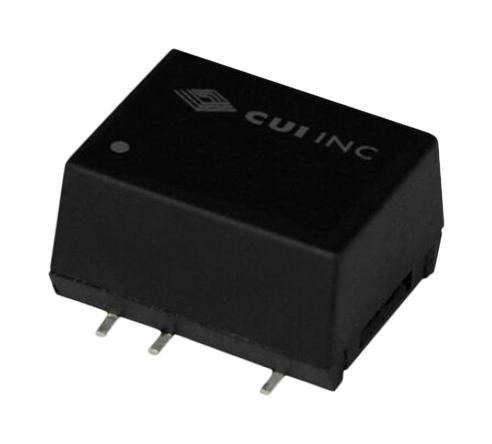

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
