Product Overview

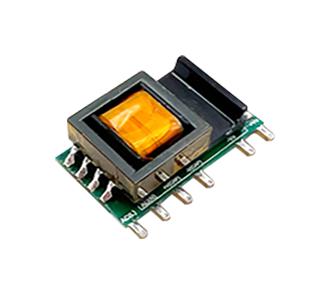

VTX-215-005-109 is a 5W, compact SIP open ultra-wide AC-DC power converter. It features wide input range accepting either AC or DC voltage, high efficiency, low power consumption and CLASS II reinforced insulation. The model is particularly suitable for industrial control, electric power, instrumentation and smart home applications which don’t have high requirement for dimension.
- Input voltage range from 90 - 528V AC (100 - 745V DC)
- 9V DC output voltage and 560mA output current
- 680µF capacitive load and 47 to 63Hz input frequency
- Input current: 0.2/0.1/0.07A max at 115/230/480V AC, inrush current:10/17/28A typ at 115/230/480V AC
- 4000V AC min dielectric strength (input to output (1Min, < 5mA))
- 100Mohm min insulation resistance at input to output (500V DC)
- Safety approvals IEC/EN/UL62368, IEC/EN61558, Compliant: IEC/EN61558, IEC/EN60335
- UL94-V0 materials and 3 year warranty
- Operating temperature range from -40 to 85°C
- Dimension is 33.5 x 17.2 x 13mm
Product details
| Power Supply Applications |
ITE & Household |
| Output Power Max |
5W |
| Output Current - Output 1 |
560mA |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
90V AC to 528V AC |
| Height |
13mm |
| Product Range |
VTX-215 Series |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
9V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Width |
17.2mm |
| Depth |
33.5mm |
| SVHC |
No SVHC (25-Jun-2025) |
