Product Overview

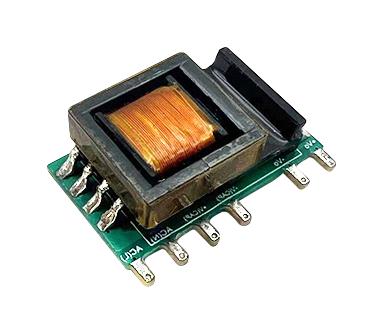

VTX-215-003-105 is a 3W compact SIP style AC-DC power converter. It features wide input range accepting either AC or DC voltage, high efficiency, low power consumption and CLASS II reinforced insulation. It is particularly suitable for industrial control, electric power, instrumentation and smart home applications which don’t have high requirement for dimension.
- Input voltage range from 85 to 305V AC (100 - 430V DC)
- 5V DC output voltage and 600mA output current
- 680µF capacitive load and 47 to 63Hz input frequency
- Input current is 0.12/0.07A max at 110/230V AC and inrush current is 13/23A typ at 110/230V AC
- 4000V AC min dielectric strength (input to output (1Min, < 5mA))
- 1000Mohm min insulation resistance at input to output (500V DC)
- Safety approvals IEC/EN/UL62368, IEC/EN61558, Compliant: IEC/EN60335
- Short circuit protection and over current protection
- Operating temperature range from -40 to 85°C
- Dimension is 26.4 x 17.6 x 11mm
Product details
| Power Supply Applications |
ITE & Household |
| Output Power Max |
3W |
| Output Current - Output 1 |
600mA |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
85V AC to 305V AC |
| Height |
11mm |
| Product Range |
VTX-215 Series |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Width |
17.6mm |
| Depth |
26.4mm |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
VIGORTRONIX |
| Part Number |
VTX-215-003-105 |
| Quantity |
Each |
| Technical Data Sheet (3.65MB) EN |
View or download |
